Key specs

View all
Voltage Rating
115 V

Description

Product overview

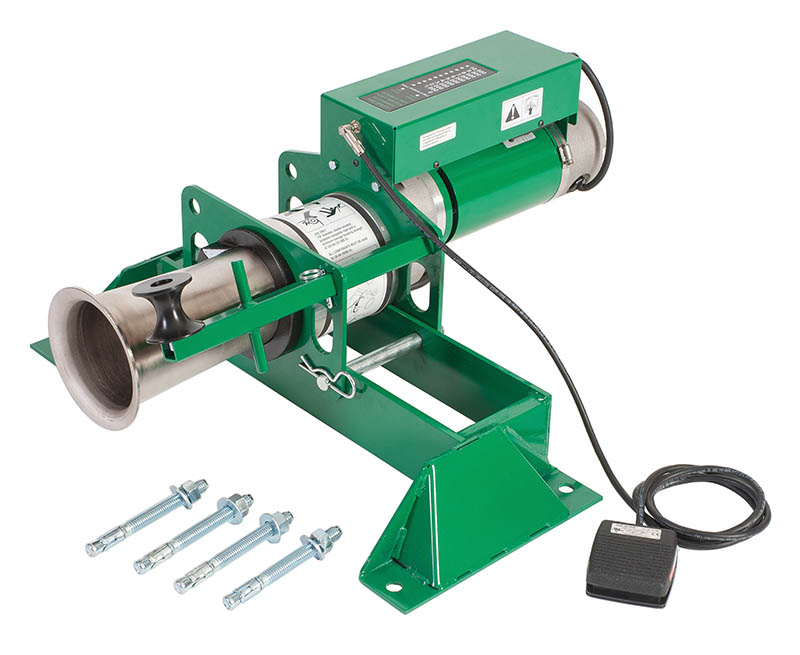

2 Speed Ultra Tugger (UT10-2S) with floor mount is a one-stop-shop: The only 2 speed puller on the market that can shift from high speed/low load pulling to low speed/high load pulling with a simple double tap motion on the foot pedal control switch. Use for cable pulls requiring high as well as low pulling loads. The no-load high speed is 16 FT/MINT and is best suited for loads up to 4000 LB where the speed will be 12 FT/MINT. The no-load low speed is 9 FT/MINT and can be used on loads up to...

2 Speed Ultra Tugger (UT10-2S) with floor mount is a one-stop-shop: The only 2 speed puller on the market that can shift from high speed/low load pulling to low speed/high load pulling with a simple double tap motion on the foot pedal control switch. Use for cable pulls requiring high as well as low pulling loads. The no-load high speed is 16 FT/MINT and is best suited for loads up to 4000 LB where the speed will be 12 FT/MINT. The no-load low speed is 9 FT/MINT and can be used on loads up to 8000 LB where the speed will be 6 FT/MINT, or a momentary peak capacity of 10000LB. 2-Speed motor that delivers the fastest pulling time for all pulling needs over the widest (10000 LB) range. Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 LB. Easy control features for increased productivity: On-board force gauge provides visual communication of pulling force and speed changes. Quick speed change from high speed to low-speed by simply double tapping foot pedal. Removable foot pedal for convenience. Sets up in less than 2 minutes and can be used in every pulling situation. This combination of speed and versatility can increase your productivity, equaling more pulls in a day and delivering greater benefit to your bottom line.

Manufacturer highlights

Additional manufacturer notes

Short name
GRN
Feed description
GRN 6900 UT10 PACKAGE W/FLOOR MOUNT
Label description
UT10-2S Package With Floor Mount
Invoice description
UT10 PACKAGE W/FLOOR MOUNT

Specifications

UPC
783310003571
UNSPSC
39121722
Country of Origin
US
Voltage Rating
115 V
Cable Type
Electrical Cable
Load
0 - 6500.000 LB (0 - 28.900 KN) Continuous Operation, 6500.000 - 8000.000 LB (28.900 - 35.600 KN) 15 Minutes ON/15 Minutes OFF, 8000.000 - 10000.000 LB (35.600 - 44.500 KN) Momentary
Mounting
Floor Mount
Prime Mover Specification
Required Rope: 7/8" diameter, double-braided, polyester composite
Sub Brand
Ultra Tugger
Voltage Rating
115 V
