6EP33116SB000AY0
SKU: 6EP33116SB000AY0
MPN: 6EP33116SB000AY0
Key specs
View all- Amperage Rating
- 6.3 A
- Type
- Power supply LOGO!Power, single-phase 5 V DC/6.3 A
- Voltage Rating
- 5 V
- Wattage
- 31.5 W
Description
Product overview

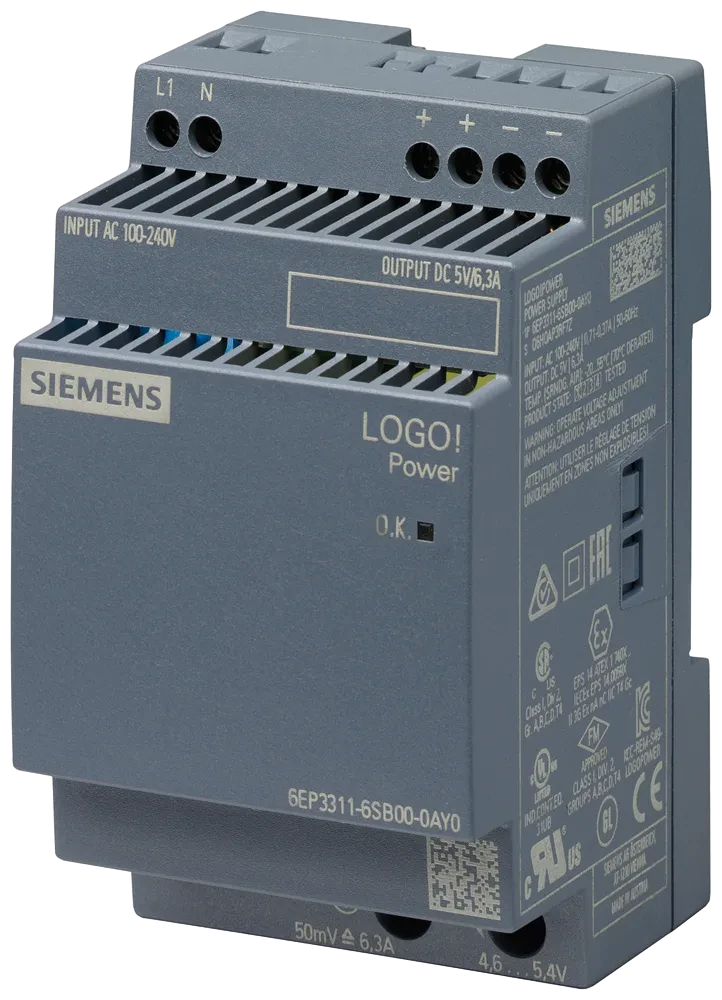

LOGO!POWER 5 V / 6.3 A stabilized power supply input 100-240 V AC output 5 V / 6.3 A DC
LOGO!POWER 5 V / 6.3 A stabilized power supply input 100-240 V AC output 5 V / 6.3 A DC
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A 6EP33116SB000AY0 LOGO POWER 5 V
- Invoice description
- LOGO POWER 5 V/6.3 A
Specifications
- UPC
- 804766458934
- UNSPSC
- 39121004
- Country of Origin
- AT
- Amperage Rating
- 6.3 A
- Type
- Power supply LOGO!Power, single-phase 5 V DC/6.3 A
- Voltage Rating
- 5 V
- Wattage
- 31.5 W
- Amperage Rating
- 6.3 A
- Efficiency
- 0.8
- Environmental Conditions
- -25 to 70
- Frequency Rating
- 47-63 Hz
- Height
- 3.543 in
- Insulation
- IP20
- Length
- 53.0 mm
- Mounting
- Snaps onto DIN rail EN 60715 35x15, various direct mounting positions
- Phase
- 1-phase AC or DC
- Receptacle Configuration
- screw-type terminals
- Standard
- Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178; cULus-listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus-recognized (UL 60950, CSA C22.2 No. 60950), File E151273; ATEX (EX) II 3G Ex nA IIC T3; cULus Class I Div. 2 (ANSI/ISA-12.12.01, CSA C22.2 No. 213) Group ABCD, T4, File E488866
- Sub Brand
- Power supply
- Type
- Power supply LOGO!Power, single-phase 5 V DC/6.3 A
- Voltage Rating
- 5 V
- Wattage
- 31.5 W
- Width
- 54.0 mm
