$35.24 / EA
manufacturer discounts
learn about discounts
- $31.71 for $300.00+
- $30.20 for $500.00+
- $28.95 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

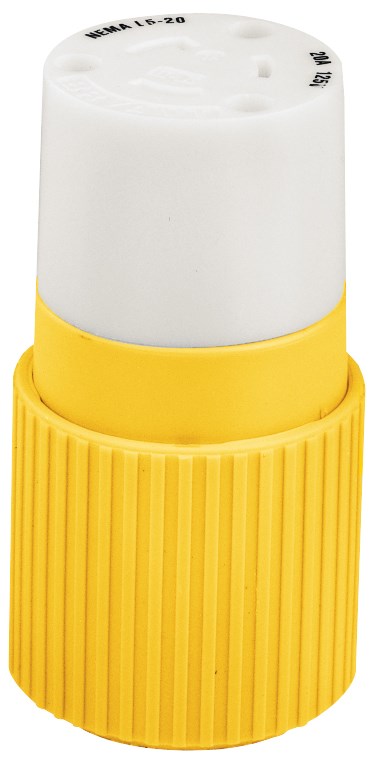

Locking Devices, Marine Grade, Female Nylon Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Yellow/White, Corrosion Resistant
Locking Devices, Marine Grade, Female Nylon Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Yellow/White, Corrosion Resistant
150
- UPC
- 781786688605
- UNSPSC
- 39121421
- Country of Origin
- US
- Amperage Rating:
- 20 A
- Color:
- White/Yellow
- Material:
- Composite
- Number Of Poles:
- 2
- Type:
- Connector Body
- Voltage Rating:
- 125 V
- Amperage Rating:
- 20 A
- Brand ID:
- BRYANT
- Carton Quantity:
- 10
- Catalog Number:
- 70520NCCR
- Color:
- White/Yellow
- Conductor Range:
- #14 AWG to #12 AWG
- Cord Diameter:
- 0.300-0.655 in
- Current Rating:
- 20 A
- Description - Long:
- Locking Devices, Marine Grade, Female Nylon Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Yellow/White, Corrosion Resistant
- Description - Short:
- Locking Devices, Marine Grade, Female Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Yellow, Corrosion Resistant
- EU RoHS Indicator:
- Yes
- Environmental Conditions:
- Indoor Dry Unless Protected By Additional Means
- FEATURES - Bullets:
- Nickel-plated copper-alloy metallic components;Molded of impact/chemical resistant high-visibility yellow nylon;Stainless steel screws;Receptacles have a one-piece grounding system with built-in self-grounding strap;Triple Gripper® cord grip on plugs and connectors which feature three captive assembly screws to automatically tighten cord grip;Individual wire pockets with clamp-type terminals
- FV_Current/Amperage Rating Description:
- 20 Amp
- FV_Voltage Rating Description:
- 125 V
- Insulation:
- Insulated Body
- Item Type:
- 20A Triple Gripper Nylon Connector
- Material:
- Composite
- Material - Mounting Hardware:
- Cord Mounted
- NEMA Rating:
- L5-20R
- Number Of Conductors:
- 3-Wire Grounding
- Number Of Poles:
- 2
- OEM Brand Name:
- Hubbell Bryant
- Product Name:
- 70520NCCR
- Temperature Rating:
- Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.
- Type:
- Connector Body
- UPC:
- 781786688605
- Voltage Rating:
- 125 V
- Voltage Rating Description:
- 125 V
