$25.03 / EA
manufacturer discounts
learn about discounts
- $22.53 for $300.00+
- $21.46 for $500.00+
- $20.56 for $1,000.00+

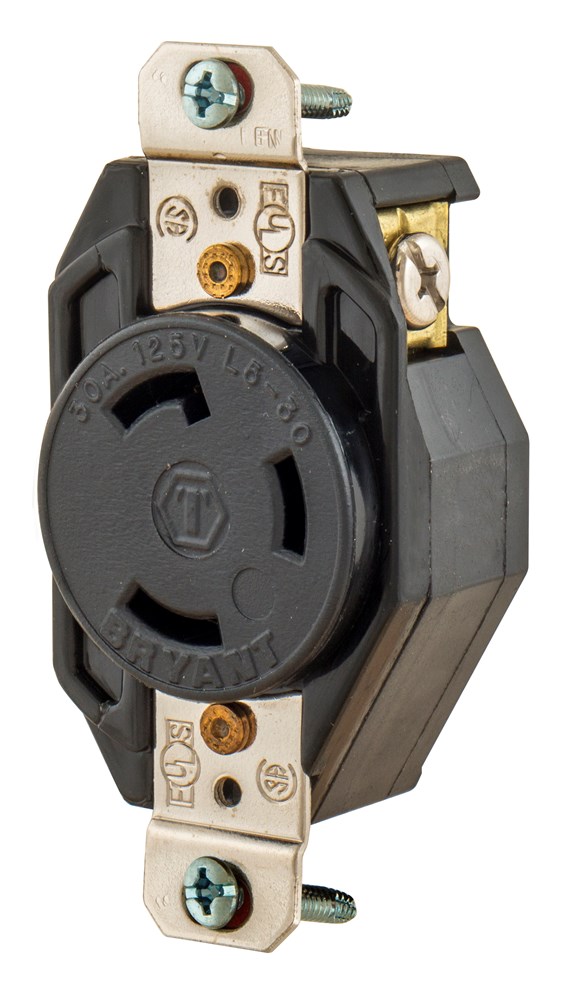

Locking Devices, Industrial, Flush Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Black
Locking Devices, Industrial, Flush Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Black
150
- UPC
- 781786688735
- UNSPSC
- 39121406
- Country of Origin
- US
- Amperage Rating:
- 30 A
- Number Of Poles:
- 2
- Size:
- 3.28 in x 1.70 in x 1.24 in
- Type:
- Locking Receptacle
- Voltage Rating:
- 125 V
- Wattage:
- 3,750 W
- Amperage Rating:
- 30 A
- Brand ID:
- BRYANT
- Carton Quantity:
- 10
- Catalog Number:
- 70530FR
- Current Rating:
- 30 A
- Description - Long:
- Locking Devices, Industrial, Flush Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Black
- Description - Short:
- Locking Devices, Industrial, Flush Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Black
- EU RoHS Indicator:
- Yes
- Environmental Conditions:
- Indoor Dry Unless Protected By Additional Means
- FEATURES - Bullets:
- Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors;Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly;NEMA rating and configuration are molded into face for easy identification;One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
- FV_Voltage Rating Description:
- 125V
- Item Type:
- 30A Single Nylon Receptacle
- Material - Mounting Hardware:
- Screw Mounting
- Number Of Poles:
- 2
- Number Of Wires:
- 3
- OEM Brand Name:
- Hubbell Bryant
- Phase:
- 1
- Product Name:
- 70530FR
- Series:
- Replacement Part
- Size:
- 3.28 in x 1.70 in x 1.24 in
- Type:
- Locking Receptacle
- UPC:
- 781786688735
- Voltage Rating:
- 125 V
- Voltage Rating Description:
- 125V
- Wattage:
- 3,750 W
- Wire Size:
- #14 AWG to #8 AWG
WD2S1034
$9,850.47 /ea
Load Disconnect Switch, Constructional Feature Explosionproof, Voltage Rating 600 VAC, Current Rating 100 Ampere, Fuse Provision Non Fusible, Enclosure Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/12, Enclosure Material Epoxy Powder Coated, Mounting Mounting Feet, Size 12 Inch W x 6.63 Inch D x 20 Inch H, Approval UL, CSA, Application Individual Motor Control Switch
WD2S3034
$5,045.99 /ea
Load Disconnect Switch, Constructional Feature Explosionproof, Voltage Rating 600 VAC, Current Rating 30 Ampere, Fuse Provision Non Fusible, Enclosure Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/12, Enclosure Material Epoxy Powder Coated, Mounting Mounting Feet, Size 12 Inch W x 6.63 Inch Depth x 20 Inch Height, Approval UL, CSA, Application Individual Motor Control Switch
WD2S6034
$5,245.02 /ea
Load Disconnect Switch, Constructional Feature Explosionproof, Voltage Rating 600 VAC, Current Rating 60 Ampere, Fuse Provision Non Fusible, Enclosure Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/12, Enclosure Material Epoxy Powder Coated, Mounting Mounting Feet, Size 12 Inch W x 6.63 Inch Depth x 20 Inch Height, Approval UL, CSA, Application Individual Motor Control Switch
| Product Image |
|
|
|
|---|---|---|---|
|
WD2S1034
Load Disconnect Switch, Constructional Feature Explosionproof, Voltage Rating 600 VAC, Current Rating 100 Ampere, Fuse Provision Non Fusible, Enclosure Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/12, Enclosure...
$9,850.47 / EA
|
WD2S3034
Load Disconnect Switch, Constructional Feature Explosionproof, Voltage Rating 600 VAC, Current Rating 30 Ampere, Fuse Provision Non Fusible, Enclosure Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/12, Enclosure...
$5,045.99 / EA
|
WD2S6034
Load Disconnect Switch, Constructional Feature Explosionproof, Voltage Rating 600 VAC, Current Rating 60 Ampere, Fuse Provision Non Fusible, Enclosure Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/12, Enclosure...
$5,245.02 / EA
|
|
