$39.40 / EA
manufacturer discounts
learn about discounts
- $35.46 for $300.00+
- $33.77 for $500.00+
- $32.36 for $1,000.00+
In stock (3)

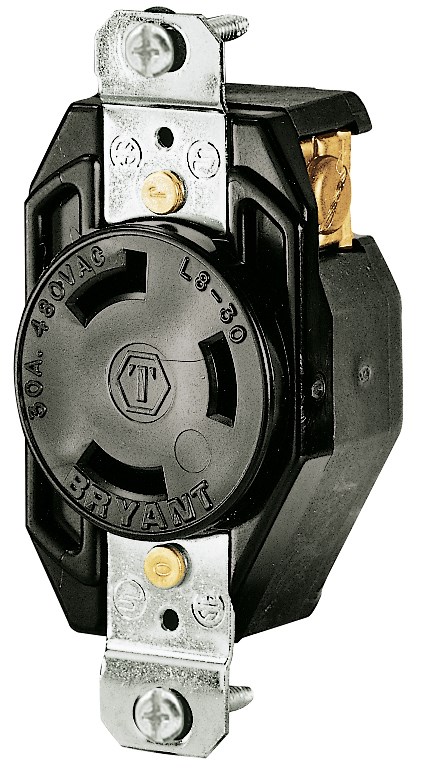

Locking Devices, Industrial, Flush Receptacle, 30A 480V AC, 2-Pole 3-Wire Grounding, L8-30R, Screw Terminal, White
Locking Devices, Industrial, Flush Receptacle, 30A 480V AC, 2-Pole 3-Wire Grounding, L8-30R, Screw Terminal, White
150
- UPC
- 781786691131
- UNSPSC
- 39121406
- Country of Origin
- US
- Amperage Rating:
- 30 A
- Material:
- Composite
- Number Of Poles:
- 2
- Size:
- 3.28 in x 1.70 in x 1.24 in
- Type:
- Receptacle
- Voltage Rating:
- 480 VAC
- Wattage:
- 14,400 W
- Amperage Rating:
- 30 A
- Brand ID:
- BRYANT
- Carton Quantity:
- 10
- Catalog Number:
- 70830FR
- Current Rating:
- 30 A
- Description - Long:
- Locking Devices, Industrial, Flush Receptacle, 30A 480V AC, 2-Pole 3-Wire Grounding, L8-30R, Screw Terminal, White
- Description - Short:
- Locking Devices, Industrial, Flush Receptacle, 30A 480V AC, 2-Pole 3-Wire Grounding, L8-30R, Screw Terminal, White
- Dielectric Strength:
- Withstands 3000V Minimum in
- EU RoHS Indicator:
- Yes
- Environmental Conditions:
- Indoor Dry Unless Protected By Additional Means
- FEATURES - Bullets:
- Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors;Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly;NEMA rating and configuration are molded into face for easy identification;One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
- FV_Current/Amperage Rating Description:
- 30 Amp
- FV_Voltage Rating Description:
- 480V AC
- Insulation:
- Insulated Body
- Item Type:
- 30A Single Nylon Receptacle
- Material:
- Composite
- Material - Mounting Hardware:
- Screw Mounting
- NEMA Rating:
- L8-30R
- Number Of Poles:
- 2
- Number Of Wires:
- 3
- OEM Brand Name:
- Hubbell Bryant
- Product Name:
- 70830FR
- Size:
- 3.28 in x 1.70 in x 1.24 in
- Temperature Rating:
- Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact
- Type:
- Receptacle
- UPC:
- 781786691131
- Voltage Rating:
- 480 VAC
- Voltage Rating Description:
- 480V AC
- Wattage:
- 14,400 W
- Wire Size:
- #14 AWG to #8 AWG
