$36.81 / EA
manufacturer discounts
learn about discounts
- $33.13 for $300.00+
- $31.55 for $500.00+
- $30.23 for $1,000.00+
In stock (15)

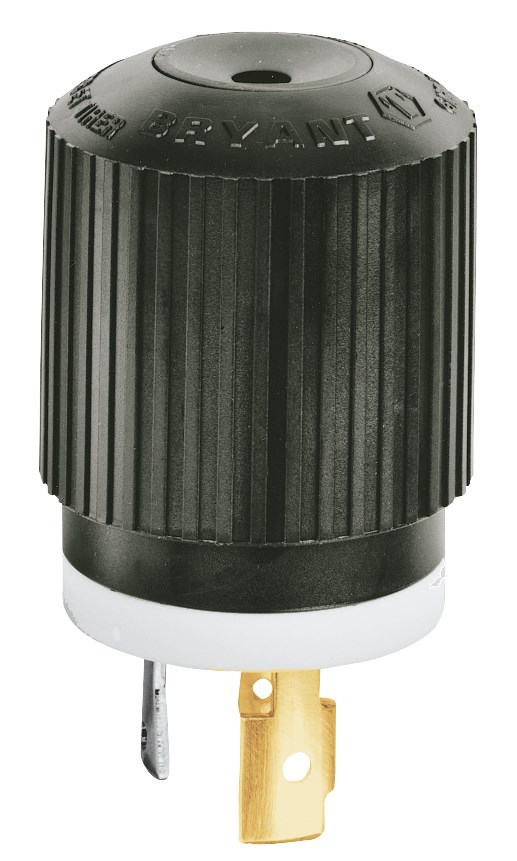

Locking Devices, Industrial, Male Plug, 30A 125/250V, 3-Pole 3-Wire Non-Grounding, L10-30P, Screw Terminal, Black and White.
Locking Devices, Industrial, Male Plug, 30A 125/250V, 3-Pole 3-Wire Non-Grounding, L10-30P, Screw Terminal, Black and White.
150
- UPC
- 781786692725
- UNSPSC
- 39121402
- Country of Origin
- US
- Amperage Rating:
- 30 A
- Color:
- Black/White
- Material:
- Composite
- Number Of Poles:
- 3
- Size:
- 2.13 in x 2.13 in x 2.86 in
- Type:
- Plugs
- Voltage Rating:
- 125/250 VAC
- Wattage:
- 7.5 kW
- Amperage Rating:
- 30 A
- Brand ID:
- BRYANT
- Carton Quantity:
- 10
- Catalog Number:
- 71030NP
- Color:
- Black/White
- Cord Diameter:
- 0.300-0.950 in
- Cord Type:
- All Listed Portables
- Current Rating:
- 30 A
- Description - Long:
- Locking Devices, Industrial, Male Plug, 30A 125/250V, 3-Pole 3-Wire Non-Grounding, L10-30P, Screw Terminal, Black and White.
- Description - Short:
- Locking Devices, Industrial, Male Plug, 30A 125/250V, 3-Pole 3-Wire Non Grounding, L10-30P, Screw Terminal, Black and White
- EU RoHS Indicator:
- Yes
- Environmental Conditions:
- Indoor Dry Unless Protected By Additional Means
- FEATURES - Bullets:
- Hand grip features wide-rib, non-slip design;Configuration-specific plug face surrounds blades to prevent infiltration of contaminants;Captive, combination Slot/Phillips assembly screws;Double wall construction for extra durability;Neutral blade is nickel-plated for easy identification;Internal “self-centering” Triple Gripper® cord grip with “radius teeth” design provides secure cord retention
- FV_Current/Amperage Rating Description:
- 30 Amp
- FV_Voltage Rating Description:
- 125/250 VAC
- Item Type:
- 30A Triple Gripper Nylon Plug
- Material:
- Composite
- Material - Mounting Hardware:
- Cord Mounted
- NEMA Rating:
- L10-30P
- Number Of Poles:
- 3
- Number Of Wires:
- 3
- OEM Brand Name:
- Hubbell Bryant
- Phase:
- 1
- Product Name:
- 71030NP
- Size:
- 2.13 in x 2.13 in x 2.86 in
- Type:
- Plugs
- UPC:
- 781786692725
- Voltage Rating:
- 125/250 VAC
- Voltage Rating Description:
- 125/250 VAC
- Wattage:
- 7.5 kW
- Wire Size:
- #18 AWG to #8 AWG
