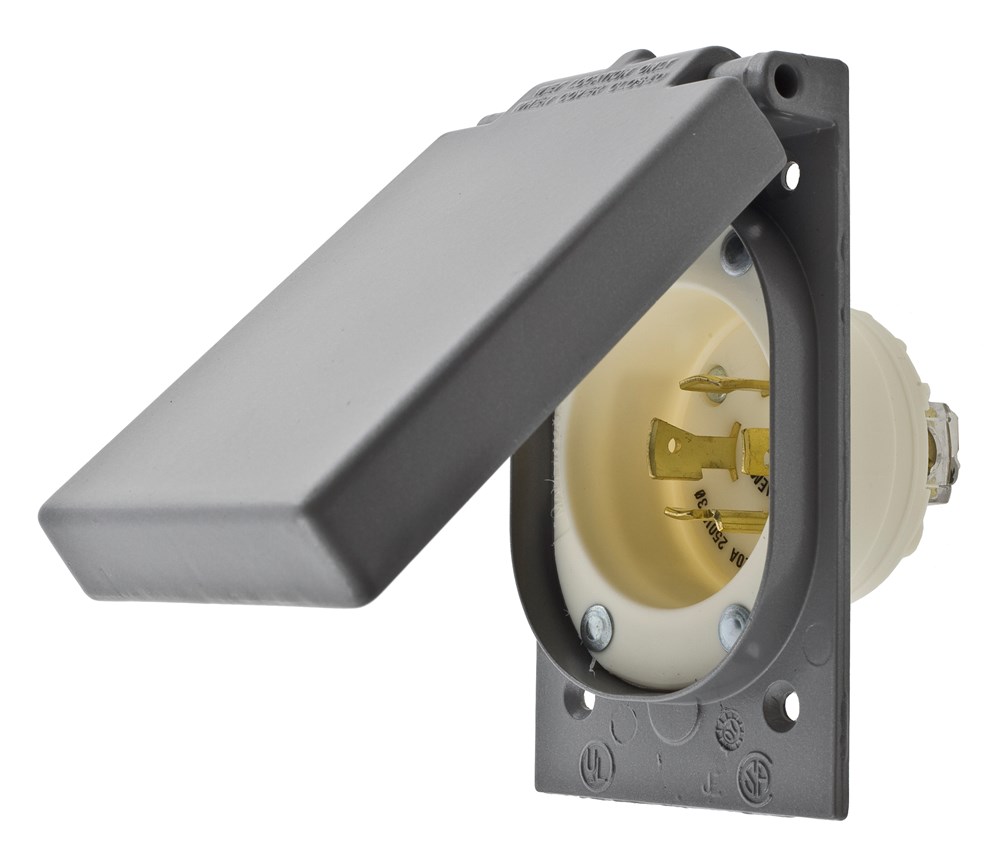

Locking Devices, Industrial, Flanged Inlet, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, White, With Weatherproof Cover
Locking Devices, Industrial, Flanged Inlet, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, White, With Weatherproof Cover
Locking Devices, Industrial, Flanged Inlet, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, White, With Weatherproof Cover

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

71520MBWP

Manufacturer
Bryant Electric

$84.97 / EA

manufacturer discounts
learn about discounts

  • $76.47 for $300.00+
  • $72.83 for $500.00+
  • $69.79 for $1,000.00+

In stock (0)
Lead time: over 7 days
may be longer on small orders

Locking Devices, Industrial, Flanged Inlet, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, White, With Weatherproof Cover

Locking Devices, Industrial, Flanged Inlet, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, White, With Weatherproof Cover

150

UPC
781786695870
UNSPSC
39121406
Country of Origin
US
Amperage Rating:
20 A
Color:
White
Material:
Composite
Number Of Poles:
3
Size:
2.88 in x 2.88 in x 2.02 in
Type:
Flanged Inlet
Voltage Rating:
3 Phase 250 VAC
Wattage:
5,000 W
Amperage Rating:
20 A
Brand ID:
BRYANT
Carton Quantity:
10
Catalog Number:
71520MBWP
Color:
White
Current Rating:
20 A
Description - Long:
Locking Devices, Industrial, Flanged Inlet, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, White, With Weatherproof Cover
Description - Short:
Locking Devices, Industrial, Flanged Inlet, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal,White, With Weatherproof Cover
Dielectric Strength:
Withstands 3000V Minimum in
EU RoHS Indicator:
Yes
Environmental Conditions:
Weather Resistant
FV_Current/Amperage Rating Description:
20 Amp
FV_Voltage Rating Description:
3 Phase 250 VAC
Insulation:
Insulated Body
Item Type:
20A Weather Protective Power Inlet
Material:
Composite
Material - Mounting Hardware:
Screw Mounting
NEMA Rating:
L15-20P
Number Of Poles:
3
Number Of Wires:
4
OEM Brand Name:
Hubbell Bryant
Product Name:
71520MBWP
Size:
2.88 in x 2.88 in x 2.02 in
Temperature Rating:
Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact
Type:
Flanged Inlet
UPC:
781786695870
Voltage Rating:
3 Phase 250 VAC
Voltage Rating Description:
3 Phase 250 VAC
Wattage:
5,000 W
Wire Size:
#18 AWG to #8 AWG
