$30.42 / EA
manufacturer discounts
learn about discounts
- $27.38 for $300.00+
- $26.08 for $500.00+
- $24.99 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

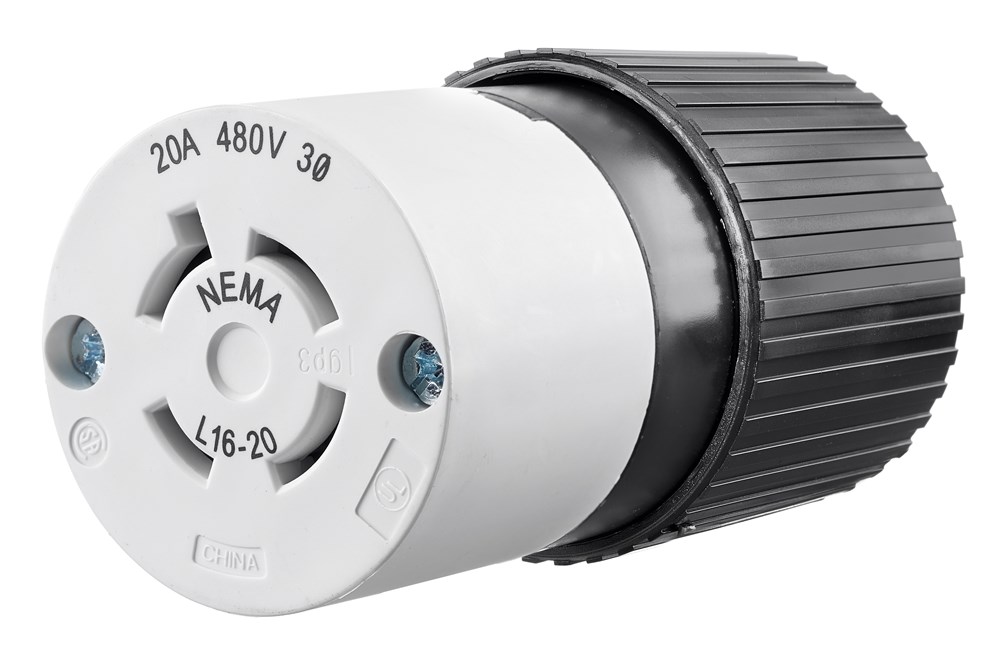

Locking Devices, Industrial, Female Nylon Connector Body, 20A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-20R, Screw Terminal, Black and White
Locking Devices, Industrial, Female Nylon Connector Body, 20A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-20R, Screw Terminal, Black and White
150
- UPC
- 781786696891
- UNSPSC
- 39121421
- Country of Origin
- CN
- Amperage Rating:
- 20 A
- Color:
- Black/White
- Material:
- Composite
- Number Of Poles:
- 3
- Type:
- Connector Body
- Voltage Rating:
- 3 Phase 480 VAC
- Amperage Rating:
- 20 A
- Brand ID:
- BRYANT
- Carton Quantity:
- 10
- Catalog Number:
- 71620NC
- Color:
- Black/White
- Conductor Range:
- #14 AWG to #12 AWG
- Cord Diameter:
- 0.465-1.150 in
- Current Rating:
- 20 A
- Description - Long:
- Locking Devices, Industrial, Female Nylon Connector Body, 20A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-20R, Screw Terminal, Black and White
- Description - Short:
- Locking Devices, Industrial, Female Connector Body, 20A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-20R, Screw Terminal, Black and White
- EU RoHS Indicator:
- Yes
- Environmental Conditions:
- Indoor Dry Unless Protected By Additional Means
- FEATURES - Bullets:
- Face and body feature alignment keys for easy assembly;Amperage, voltage and NEMA configuration imprinted on face for easy identification;Impact/chemical resistant, toughened nylon construction;Internal “self-centering” Triple Gripper® cord grip with “radius teeth” design provides secure cord retention
- FV_Current/Amperage Rating Description:
- 20 Amp
- FV_Voltage Rating Description:
- 3 Phase 480 VAC
- Insulation:
- Insulated Body
- Item Type:
- 20A Triple Gripper Nylon Connector
- Material:
- Composite
- Material - Mounting Hardware:
- Cord Mounted
- NEMA Rating:
- L16-20R
- Number Of Conductors:
- 4-Wire Grounding
- Number Of Poles:
- 3
- OEM Brand Name:
- Hubbell Bryant
- Product Name:
- 71620NC
- Temperature Rating:
- Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.
- Type:
- Connector Body
- UPC:
- 781786696891
- Voltage Rating:
- 3 Phase 480 VAC
- Voltage Rating Description:
- 3 Phase 480 VAC
