$42.73 / EA
manufacturer discounts
learn about discounts
- $38.46 for $300.00+
- $36.62 for $500.00+
- $35.10 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

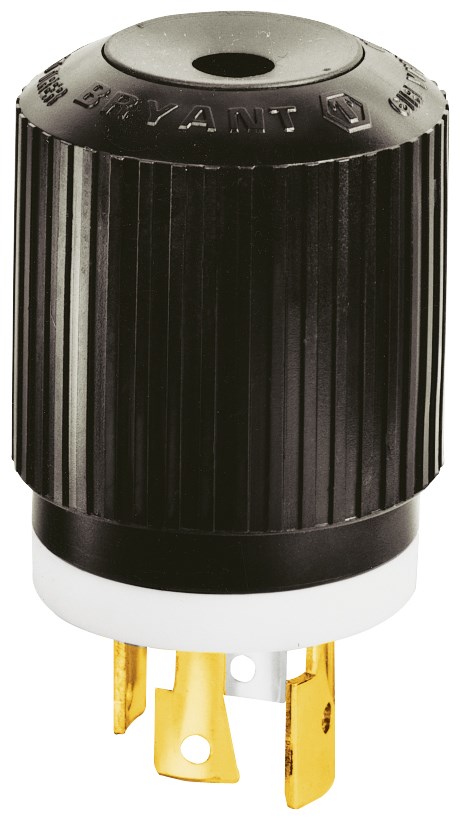

Locking Devices, Industrial, Male Plug, 30A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, L18-30P, Screw Terminal, Black and White.
Locking Devices, Industrial, Male Plug, 30A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, L18-30P, Screw Terminal, Black and White.
150
- UPC
- 781786698529
- UNSPSC
- 39121402
- Country of Origin
- US
- Amperage Rating:
- 30 A
- Color:
- Black/White
- Material:
- Composite
- Number Of Poles:
- 4
- Size:
- 2.13 in x 2.13 in x 2.86 in
- Type:
- Plugs
- Voltage Rating:
- 3 Phase Y 120/208 VAC
- Wattage:
- 6,240 W
- Amperage Rating:
- 30 A
- Brand ID:
- BRYANT
- Carton Quantity:
- 10
- Catalog Number:
- 71830NP
- Color:
- Black/White
- Cord Diameter:
- 0.465-1.150 in
- Cord Type:
- All Listed Portables
- Current Rating:
- 30 A
- Description - Long:
- Locking Devices, Industrial, Male Plug, 30A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, L18-30P, Screw Terminal, Black and White.
- Description - Short:
- Locking Devices, Industrial, Male Plug, 30A 3- Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, L18-30P, Screw Terminal, Black and White
- EU RoHS Indicator:
- Yes
- Environmental Conditions:
- Indoor Dry Unless Protected By Additional Means
- FEATURES - Bullets:
- Hand grip features wide-rib, non-slip design;Configuration-specific plug face surrounds blades to prevent infiltration of contaminants;Captive, combination Slot/Phillips assembly screws;Double wall construction for extra durability;Neutral blade is nickel-plated for easy identification;Internal “self-centering” Triple Gripper® cord grip with “radius teeth” design provides secure cord retention
- FV_Current/Amperage Rating Description:
- 30 Amp
- FV_Voltage Rating Description:
- 3 Phase Y 120/208 VAC
- Item Type:
- 30A Triple Gripper Nylon Plug
- Material:
- Composite
- Material - Mounting Hardware:
- Cord Mounted
- NEMA Rating:
- L18-20P
- Number Of Poles:
- 4
- Number Of Wires:
- 4
- OEM Brand Name:
- Hubbell Bryant
- Phase:
- 3
- Product Name:
- 71830NP
- Size:
- 2.13 in x 2.13 in x 2.86 in
- Type:
- Plugs
- UPC:
- 781786698529
- Voltage Rating:
- 3 Phase Y 120/208 VAC
- Voltage Rating Description:
- 3 Phase Y 120/208 VAC
- Wattage:
- 6,240 W
- Wire Size:
- #18 AWG to #8 AWG
