$57.18 / EA
manufacturer discounts
learn about discounts
- $51.46 for $300.00+
- $49.01 for $500.00+
- $46.97 for $1,000.00+

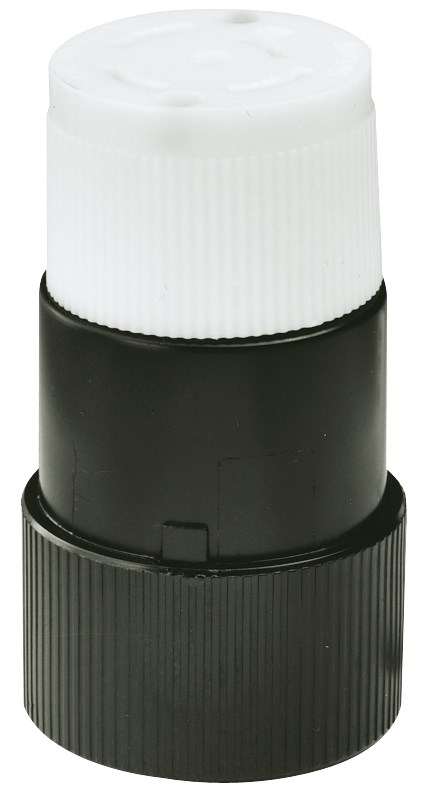

Locking Devices, Industrial, Female Nylon Connector Body, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, Non-NEMA, Screw Terminal, Black and White
Locking Devices, Industrial, Female Nylon Connector Body, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, Non-NEMA, Screw Terminal, Black and White
150
- UPC
- 781786628380
- UNSPSC
- 39121421
- Country of Origin
- US
- Amperage Rating:
- 20 A
- Color:
- Yellow
- Material:
- Composite
- Number Of Poles:
- 4
- Type:
- Connector Body
- Voltage Rating:
- 3 Phase Y 120/208 VAC
- Amperage Rating:
- 20 A
- Brand ID:
- BRYANT
- Carton Quantity:
- 10
- Catalog Number:
- 7414
- Color:
- Yellow
- Conductor Range:
- #14 AWG to #12 AWG
- Cord Diameter:
- 0.625-1.150 in
- Current Rating:
- 20 A
- Description - Long:
- Locking Devices, Industrial, Female Nylon Connector Body, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, Non-NEMA, Screw Terminal, Black and White
- Description - Short:
- Locking Devices, Industrial, Female Connector Body, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non-Grounding, Non- NEMA,ScrewTerminal, Black and White
- EU RoHS Indicator:
- Yes
- Environmental Conditions:
- Indoor Dry Unless Protected By Additional Means
- FV_Current/Amperage Rating Description:
- 20 Amp
- FV_Voltage Rating Description:
- 3 Phase Y 120/208 VAC
- Insulation:
- Insulated Body
- Item Type:
- 20A Nylon Connector-For Replacement Use
- Material:
- Composite
- Material - Mounting Hardware:
- Cord Mounted
- NEMA Rating:
- Non-NEMA
- Number Of Conductors:
- 4-Wire Non-Grounding
- Number Of Poles:
- 4
- OEM Brand Name:
- Hubbell Bryant
- Product Name:
- 7414
- Temperature Rating:
- Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.
- Type:
- Connector Body
- UPC:
- 781786628380
- Voltage Rating:
- 3 Phase Y 120/208 VAC
- Voltage Rating Description:
- 3 Phase Y 120/208 VAC
5459-VY
$30.93 /ea
20 Amp, 250 Volt, Connector, Straight Blade, Industrial Grade, Grounding, Python, Yellow
| Attributed Data | Included |
|---|---|
| Color | Yellow Yes |
| Environmental Conditions | Flammability (Rated V-2 per UL94) Yes |
| Material | Nylon Yes |
| NEMA Rating | 6-20R Yes |
| Number Of Conductors | 3 Yes |
| Number Of Poles | 2 Yes |
| Standard | NEMA (WD-1, WD-6);NOM Certified (057);ANSI (C-73);CSA C22 2 No.42 (File LR-406);UL Listed 498 (E13399) Yes |
| Sub Brand | Python Yes |
| Type | Hinged Connector Yes |
15S31-UB
$29.15 /ea
15 SERIES SNAP BACK COVER, THERMO-PLASTIC,FOR UL-1691 MALE AND FEMALE PANEL RECEPTACLES, COF BLUE
15S31-UE
$29.15 /ea
15 SERIES SNAP BACK COVER, THERMO-PLASTIC,FOR UL-1691 MALE AND FEMALE PANEL RECEPTACLES, COF BLACK
| Product Image |
|
|
|
|---|---|---|---|
|
5459-VY
20 Amp, 250 Volt, Connector, Straight Blade, Industrial Grade, Grounding, Python, Yellow
$30.93 / EA
|
15S31-UB
15 SERIES SNAP BACK COVER, THERMO-PLASTIC,FOR UL-1691 MALE AND FEMALE PANEL RECEPTACLES, COF BLUE
$29.15 / EA
|
15S31-UE
15 SERIES SNAP BACK COVER, THERMO-PLASTIC,FOR UL-1691 MALE AND FEMALE PANEL RECEPTACLES, COF BLACK
$29.15 / EA
|
|
