Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$98.79 / EA
manufacturer discounts
learn about discounts
- $85.16 for $1,300.00+
- $80.39 for $2,000.00+
- $76.31 for $3,000.00+
Local stock: 0
Lead time:
1
-
2
working days
20 Amp, 250 Volt, 3 Phase, NEMA L15-20, 3P, 4W, Industrial Grade, Grounding, Wetguard, Locking Connector for Single Inlet, Yellow
20 Amp, 250 Volt, 3 Phase, NEMA L15-20, 3P, 4W, Industrial Grade, Grounding, Wetguard, Locking Connector for Single Inlet, Yellow
150
- UPC
- 078477525166
- UNSPSC
- 39121402
- Country of Origin
- US
- Amperage Rating:
- 20 A
- Color:
- Yellow
- Material:
- TPV
- Number Of Poles:
- 3
- Size:
- 2.31 Diameter X 4.68 L IN
- Type:
- Watertight Connector;Locking
- Voltage Rating:
- 250 V
- Amperage Rating:
- 20 A
- Color:
- Yellow
- Connection:
- Screw Terminal
- Cord Type:
- SO;ST;STO;SJ;SJO;SJT;SOO
- Environmental Conditions:
- Flammability (Rated V-2 per UL 94 (Wiring Module));Operating Temperature Range (-40 to +60 DEG C)
- Material:
- TPV
- Mounting:
- Cable
- NEMA Rating:
- L15-20R
- Number Of Poles:
- 3
- Number Of Wires:
- 4
- Phase:
- 3
- Size:
- 2.31 Diameter X 4.68 L IN
- Standard:
- NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA (C22.2 No.42);UL (498)
- Sub Brand:
- Wetguard
- Type:
- Watertight Connector;Locking
- Voltage Rating:
- 250 V
- Wire Size:
- 16-10 AWG
Recently Viewed
-
76W75-C
LEVITON MANUFACTURING
20 Amp, 250 Volt, 3 Phase, NEMA L15-20, 3P, 4W, Industrial Grade, Grounding, Wetguard, Locking Connector for Single Inlet, Yellow
See more details -
T300-APP
APPLETON ELECTRIC CO
OZ-Gedney Spec 5 Type T Conduit Body, 3 IN Hub, Length: 15-1/8 IN, 4-3/4 IN Height, Malleable Iron, Finish: Zinc Electroplated With Aluminum Enamel, C...
See more details -

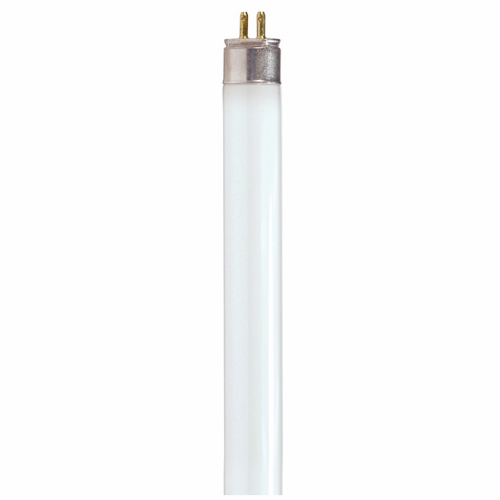

S8110
