Videos & documents
Documents
7PV15401AW30
SKU: 7PV15401AW30
MPN: 7PV15401AW30
Key specs
View all- Type
- 7PV Time Relay
Description
Product overview

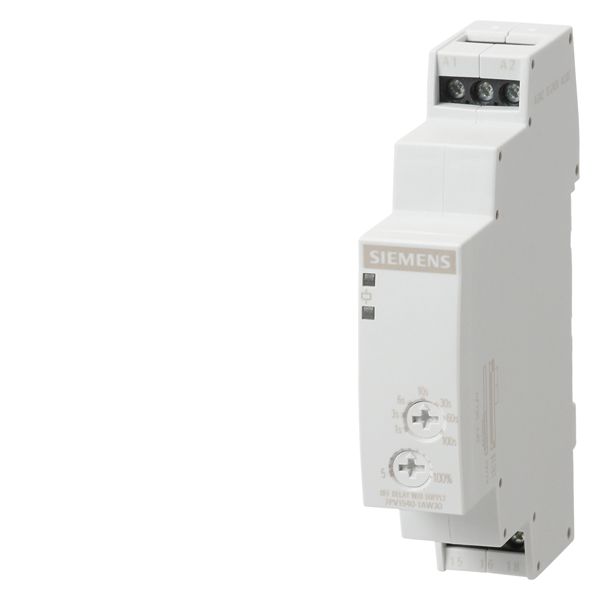

Timing relay, solid-state, off-delay, w/o aux.voltage, 1 co contact 7 time setting ranges 0.05s...100s, 24-240V AC/DC, with led, screw terminal
Timing relay, solid-state, off-delay, w/o aux.voltage, 1 co contact 7 time setting ranges 0.05s...100s, 24-240V AC/DC, with led, screw terminal
Manufacturer highlights
Additional manufacturer notes
- Feed description
- S-A 7PV15401AW30 TIMNG RELAY,OFF-DE
- Invoice description
- TIMNG RELAY,OFF-DELAY,240V AC/DC,9SETTNG
Specifications
- UPC
- 040892552744
- UNSPSC
- 39122329
- Country of Origin
- CZ
- Type
- 7PV Time Relay
- Contact Rating
- R150 / B300
- Environmental Conditions
- 70.0 -40.0 C
- Mounting
- snap-on fastening on 35 mm standard rail any
- Operating Cycles
- 10M
- Operating Temperature
- 55.0 -25.0 C
- Resistance
- 4000
- Standard
- CCC/UL/CE
- Sub Brand
- SIRIUS
- Timing Range
- 0.05 to 360,000 s
- Type
- 7PV Time Relay
Do you have a question about 7PV15401AW30?
