8007U
SKU: 8007U
MPN: 8007U
Key specs
View all- Action
- SPDT
- Number Of Poles
- 1
- Size
- L=4.687 - H=7.937 - W=2.937 IN
- Type
- 24 Hour Time Switch
Description
Product overview

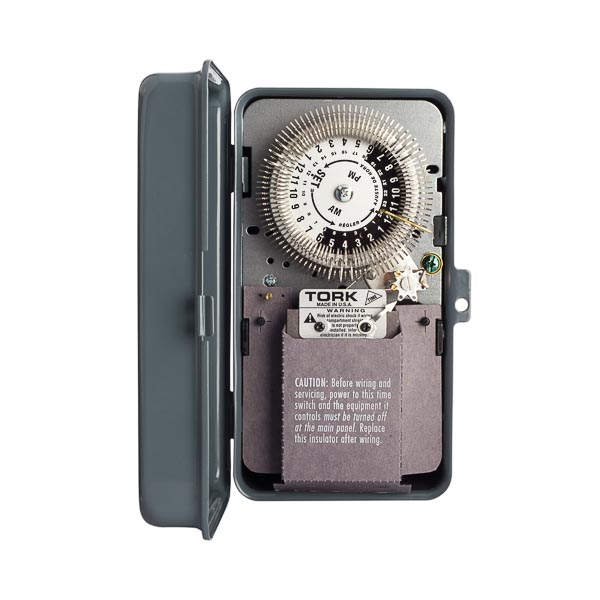

24 Hour Cycle Skip A Day Timer 20A 480V SPDT Indoor Metal Enclosure
24 Hour Cycle Skip A Day Timer 20A 480V SPDT Indoor Metal Enclosure
Manufacturer highlights
Additional manufacturer notes
- Short name
- TORK
- Feed description
- NSI 8007U 24 Hour Cycle Skip A Day
- Invoice description
- 24 Hour Cycle Skip A Day Timer 480V SPDT
Specifications
- UPC
- 786261700087
- Action
- SPDT
- Number Of Poles
- 1
- Size
- L=4.687 - H=7.937 - W=2.937 IN
- Type
- 24 Hour Time Switch
- Action
- SPDT
- Base
- Screw
- Contact Rating
- 480-120 Trans
- Enclosure
- NEMA 1 Metal Indoor
- Environmental Conditions
- -40 to 165 F
- Frequency Rating
- 60 Hz
- Initiation
- Contact
- Mounting
- Screw Mount
- Number Of Pins
- 96
- Number Of Poles
- 1
- Operating Temperature
- -40 to 165 F
- Phase
- 1
- Size
- L=4.687 - H=7.937 - W=2.937 IN
- Standard
- UL-CSA
- Sub Brand
- Mechanical Time Controls
- Timing Range
- 0-24 h
- Type
- 24 Hour Time Switch
