800L2

SKU: 800L2

MPN: 800L2

Key specs

View all
Color
Silver
Material
Aluminum
Number Of Poles
1
Voltage Rating
600 V

Description

Product overview

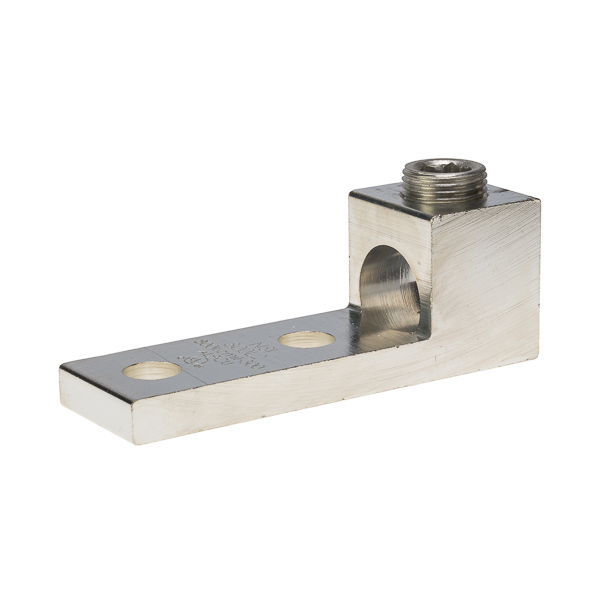

1 Port Panelboard Lug 800 MCM - 350 MCM Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 volts (2000V max per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.750".

1 Port Panelboard Lug 800 MCM - 350 MCM Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 volts (2000V max per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.750".

Manufacturer highlights

Additional manufacturer notes

Feed description
NSI 800L2 NEMA PANELBOARD LUG 800-3
Invoice description
Nema Panel Lug 800-300

Specifications

UPC
662381001337
Color
Silver
Material
Aluminum
Number Of Poles
1
Voltage Rating
600 V
Color
Silver
Environmental Conditions
90 C
Finish
Aluminum
Material
Aluminum
Number Of Poles
1
Sub Brand
Mechanical Connector
Temperature Rating
90 C
Voltage Rating
600 V
