800T-3
SKU: 800T-3
MPN: 800T-3
Key specs
View all- Color
- Silver
- Material
- Aluminum
- Number Of Poles
- 1
- Voltage Rating
- 600 V
Description
Product overview

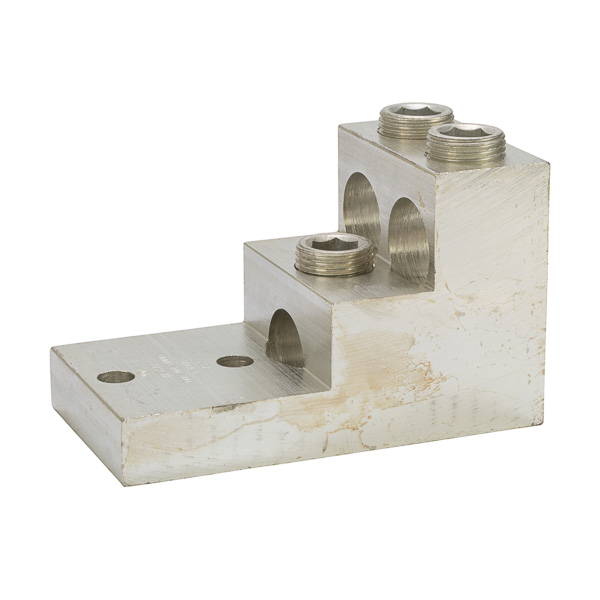

3 Port Stacked Lug 800 - 300 MCM Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".
3 Port Stacked Lug 800 - 300 MCM Stacked Lugs are large size set screw connectors with wire holes stacked on top of each other to minimize the width of the connector. Made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Rated 600 volts (2000V max. per UL486B). UL486A/B Listed. Temperature rating 90 degrees C. Mounting hole spacing is NEMA standard of 1.75".
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI 800T-3 STEP PANEL LUG (3) 800-3
- Invoice description
- Step Panel Lug (3)800-300
Specifications
- UPC
- 662381001863
- Color
- Silver
- Material
- Aluminum
- Number Of Poles
- 1
- Voltage Rating
- 600 V
- Color
- Silver
- Environmental Conditions
- 90 C
- Finish
- Aluminum
- Material
- Aluminum
- Number Of Poles
- 1
- Sub Brand
- Mechanical Connector
- Temperature Rating
- 90 C
- Voltage Rating
- 600 V
