80NHG000B
SKU: 80NHG000B
MPN: 80NHG000B
Key specs
View all- Amperage Rating
- 80 A
- Material
- Ceramic
- Size
- 78.50 mm Length X 21.00 mm Width
- Type
- Low voltage NH fuse
- Voltage Rating
- 500 V
Description
Product overview

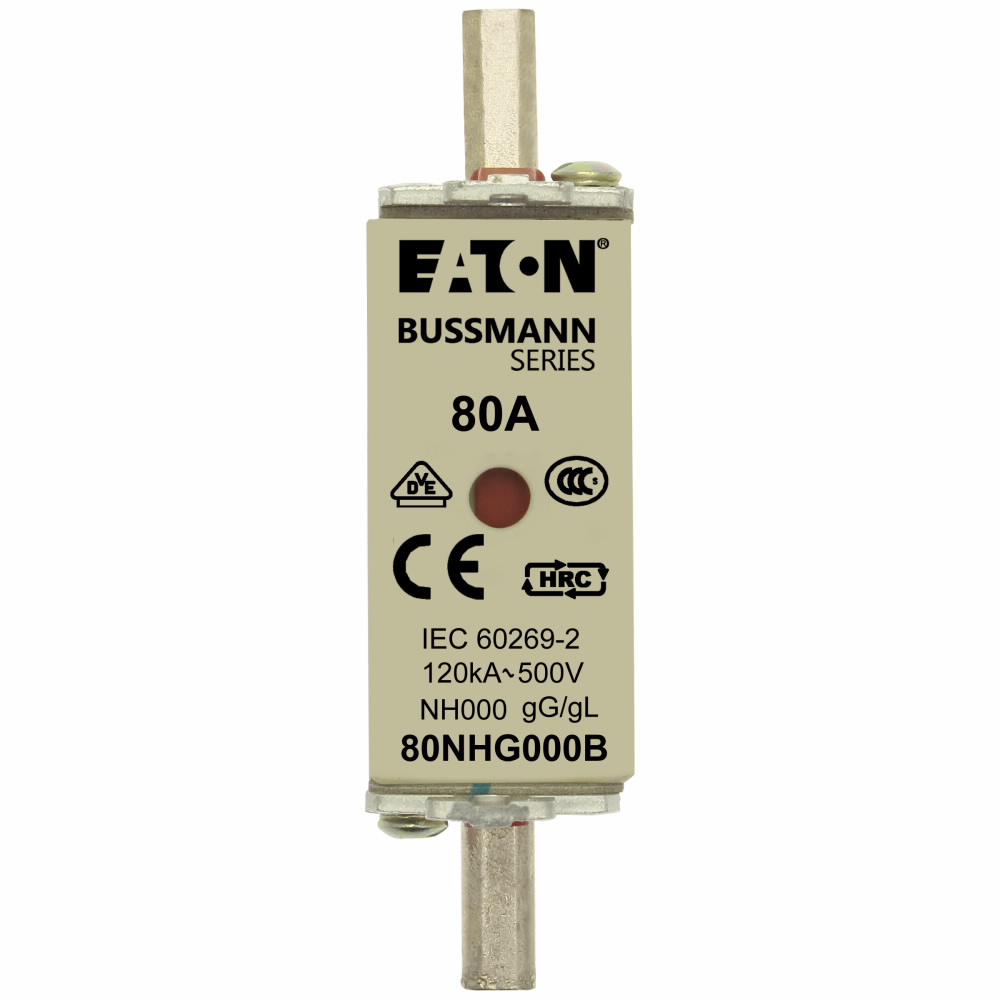

Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 80A, 120 kAIC, Combination fuse status indicator, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Metal plated copper contact plate, Ceramic body
Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 80A, 120 kAIC, Combination fuse status indicator, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Metal plated copper contact plate, Ceramic body
Manufacturer highlights
Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is...
Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS 80NHG000B NH FUSE 80AMP 500V S
- Invoice description
- NH FUSE 80AMP 500V SIZE 000 GG MGL
Specifications
- UPC
- 051712625852
- UNSPSC
- 39121627
- Country of Origin
- IN
- Amperage Rating
- 80 A
- Material
- Ceramic
- Size
- 78.50 mm Length X 21.00 mm Width
- Type
- Low voltage NH fuse
- Voltage Rating
- 500 V
- Amperage Rating
- 80 A
- Class
- Class C gL/gG
- Connection
- Blade end
- Dimensions
- 3.1102 IN X 0.8268 IN X 2.0079 IN
- Frequency Rating
- 45-62 Hz
- Interrupt Rating
- 120 kAIC
- Material
- Ceramic
- Size
- 78.50 mm Length X 21.00 mm Width
- Standard
- UL Listed ,EAC ,CCC Marked ,UL Listed ,VDE ,EAC ,CCC Marked ,CCC Marked ,UL Listed ,VDE ,EAC ,VDE ,CCC Marked ,VDE ,Marqué CCC ,VDE ,EAC ,EAC ,EAC ,VDE ,Répertorié UL ,UL geregistreerd ,UL Listed ,CCC gemarkeerd,Marquage CE,RoHS Compliant,CE Marked,CE-Kennzeichnung,CE-merket,Conforme a RoHS,CE-markering,RoHS-kompatibel,RoHS-konform,RoHS-compliant,Conformité RoHS,Con marchio CE
- Sub Brand
- Bussmann Series
- Type
- Low voltage NH fuse
- Voltage Rating
- 500 V
