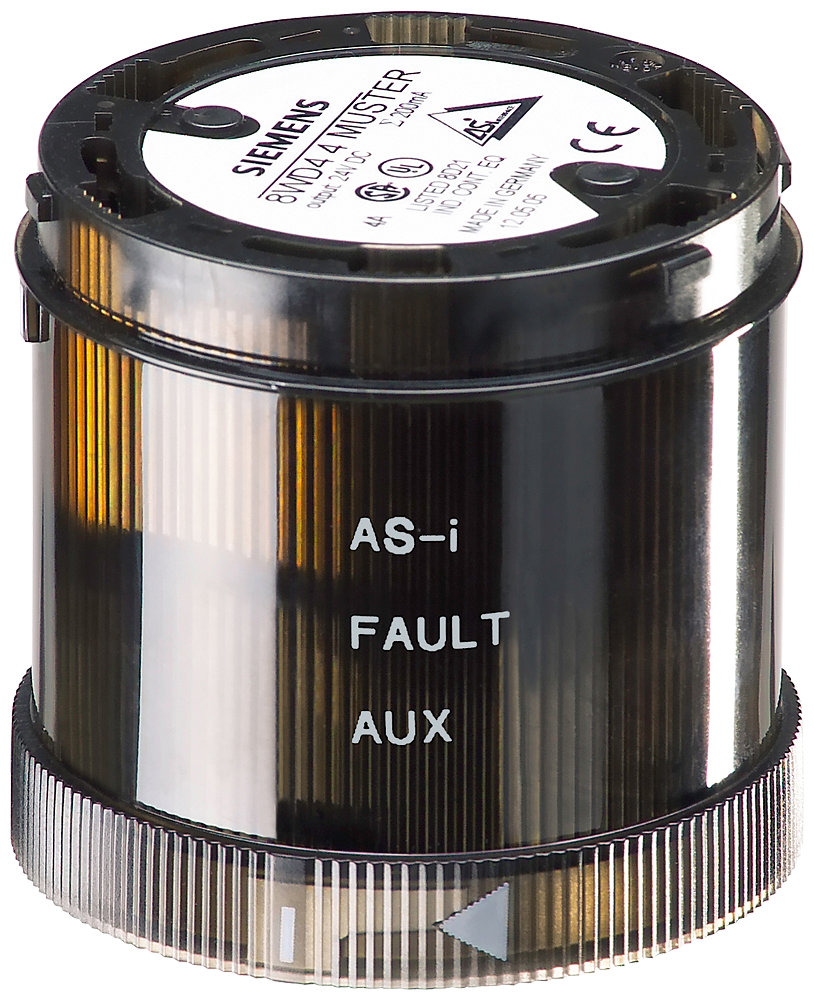

Siemens Industry, Inc. 8WD4428-0BE Indicator Light Parts Or Accessories product image

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Brochure Url Usage Guide

8WD4428-0BE

SKU: 8WD4428-0BE

MPN: 8WD4428-0BE

Purchase options

$659.29 / EA

manufacturer discounts
learn about discounts

$591.08 for $1,500.00+
$568.35 for $2,500.00+
$545.62 for $3,500.00+

Available to order

Local stock: 0
Lead time: over 7 working days

Lead time: over 7 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Request a quote

Key specs

View all

Material: PC

Description

Product overview

As-interface adapter element, black, with/without external auxiliary voltage, can be selected, standard as-i, for 4 signaling elements, 24 V DC, diameter 70 mm

Manufacturer highlights

Additional manufacturer notes

Short name: S-A
Feed description: S-A 8WD4428-0BE SIG.COL.AS-INTERFAC
Invoice description: SIG.COL.AS-INTERFACE ELEMENT W/ 24V EXT.

Specifications

UPC: 754554931388

UNSPSC: 39121544

Country of Origin: DE

Material: PC

Ambient temperature / during operation / maximum: 50 °C

Ambient temperature / during operation / minimum: -20 °C

Height: 65.5 mm

Material: PC

Mounting type: Bayonet

Operating voltage / 1 / at DC / rated value: 24 V

Outer diameter / of the signal column element: 70 mm

Product designation: AS-Interfacemodule

Protection class IP: IP65

Type of voltage / of the operating voltage: DC

Width: 70 mm
