Dale Electric Supply Co Inc
9610 POWER METER WITH INTEGRATED DISPLAY 5MB LOGGING MEMORY AND SAMPLING RATE 512/CYCLE. OPERATIONAL PSU 85-240 VAC / 110-300 VDC. INPUT RATINGS 2663 - 347 (L-N) / 208 - 600 (L-L) VAC (5A NOMINAL - 20A FULL SCALE) AT 60 HZ. COMMUNICATION CARDS (4) RS232/RS485 - RS485 - INFRARED - 10/100 BASE T. SPECIAL FEATURES WAVEFORM CAPTURE, CUSTOM WEBPAGES, 8 BINARY / 4 ANALOG INPUTS (0 - 20 MAMP) AND 4 ANALOG OUTPUTS (0 - 20 MAMP), EN50160 COMPLIANCE MONITORING.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

9610DC-1156-GFZC

$14,625.45 / EA

manufacturer discounts
learn about discounts

  • $13,112.48 for $1,500.00+
  • $12,608.15 for $2,500.00+
  • $12,103.82 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

9610 POWER METER WITH INTEGRATED DISPLAY 5MB LOGGING MEMORY AND SAMPLING RATE 512/CYCLE. OPERATIONAL PSU 85-240 VAC / 110-300 VDC. INPUT RATINGS 2663 - 347 (L-N) / 208 - 600 (L-L) VAC (5A NOMINAL - 20A FULL SCALE) AT 60 HZ. COMMUNICATION CARDS (4) RS232/RS485 - RS485 - INFRARED - 10/100 BASE T. SPECIAL FEATURES WAVEFORM CAPTURE, CUSTOM WEBPAGES, 8 BINARY / 4 ANALOG INPUTS (0 - 20 MAMP) AND 4 ANALOG OUTPUTS (0 - 20 MAMP), EN50160 COMPLIANCE MONITORING.

9610 POWER METER WITH INTEGRATED DISPLAY 5MB LOGGING MEMORY AND SAMPLING RATE 512/CYCLE. OPERATIONAL PSU 85-240 VAC / 110-300 VDC. INPUT RATINGS 2663 - 347 (L-N) / 208 - 600 (L-L) VAC (5A NOMINAL - 20A FULL SCALE) AT 60 HZ. COMMUNICATION CARDS (4) RS232/RS485 - RS485 - INFRARED - 10/100 BASE T. SPECIAL FEATURES WAVEFORM CAPTURE, CUSTOM WEBPAGES, 8 BINARY / 4 ANALOG INPUTS (0 - 20 MAMP) AND 4 ANALOG OUTPUTS (0 - 20 MAMP), EN50160 COMPLIANCE MONITORING.

150

UPC
662643720624
UNSPSC
41113708
Country of Origin
CA
Type:
9610SERIESPOWERQUALITYMETER
Voltage Rating:
600 V
Standard:
ANSIC12.20CLASS.2S/ANSIC12.16/IEC60687
Type:
9610SERIESPOWERQUALITYMETER
Voltage Rating:
600 V

Recently Viewed

  • placeholder image

    9610DC-1156-GFZC

    SIEMENS INDUSTRY, INC.
    9610 POWER METER WITH INTEGRATED DISPLAY 5MB LOGGING MEMORY AND SAMPLING RATE 512/CYCLE. OPERATIONAL PSU 85-240 VAC / 110-300 VDC. INPUT RATINGS 2663...
    See more details
  • placeholder image

    MNG14-156DFIK-A

    3M

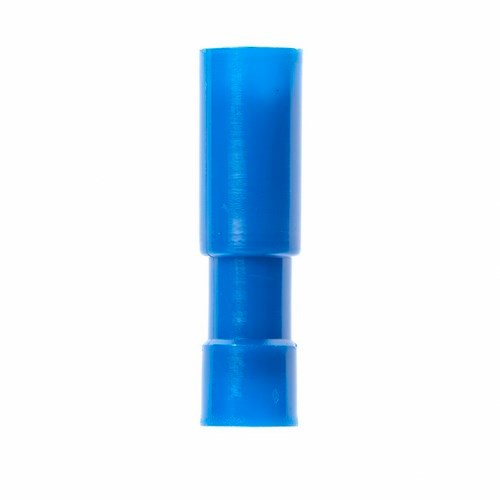

    3M™ Scotchlok™ Color-Coded Bullet Style Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for easy...
