A530MW
SKU: A530MW
MPN: A530MW
Key specs
View all- Action
- SPDT
- Number Of Poles
- 1
- Size
- H=5.00 - W=3.00 IN
- Type
- Spring Wound In Wall Time Switch
Description
Product overview

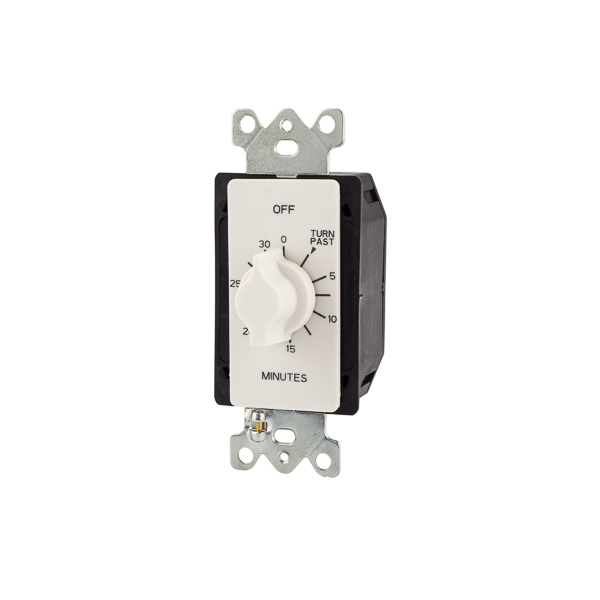

Tork 30 Min Twist Timer No Hold In-Wall Time Switch APPLICATIONS: Whole House Fans, Indoor/Outdoor Lighting, Bathroom Fans and Lights, Self Storage. FEATURES: COLOR: White VARIABLE TIMING: Twist knob for time ON setting up to 30 minutes. HOLD FEATURE: No Hold on this model. EASY SET : No adjustments. Just wire and go, EASY WIRING: No neutral required. Great for retrofit, Use as single or in multi-gang box with no de-rating. SWITCH TYPE: SPST "2 in 1" contacts wire has SPST also WALL PLATE: Fits...
Tork 30 Min Twist Timer No Hold In-Wall Time Switch APPLICATIONS: Whole House Fans, Indoor/Outdoor Lighting, Bathroom Fans and Lights, Self Storage. FEATURES: COLOR: White VARIABLE TIMING: Twist knob for time ON setting up to 30 minutes. HOLD FEATURE: No Hold on this model. EASY SET : No adjustments. Just wire and go, EASY WIRING: No neutral required. Great for retrofit, Use as single or in multi-gang box with no de-rating. SWITCH TYPE: SPST "2 in 1" contacts wire has SPST also WALL PLATE: Fits standard or decorator style wall plates, see below (not included). CONTACT RATINGS: VOLTAGE: 125/250/277VAC 50/60Hz RESISTIVE: 125VAC Rating: 20A 250VAC Rating: 10A 277VAC Rating: 10A INDUCTIVE: 125VAC Rating: 20A 250VAC Rating: 10A 277VAC Rating: 10A TUNGSTEN: 125 VAC Rating: 7A MOTOR: 125VAC Rating: 1HP 250VAC Rating: 2HP CAUTION: This timer is not to be used in precision timing applications where inaccurate timing could have dangerous consequences (i.e. sun lamp, sauna, etc).
Manufacturer highlights
Additional manufacturer notes
- Short name
- TORK
- Feed description
- NSI A530MW Interval Timer 30 Min Wh
- Invoice description
- Interval Timer 30 Min White
Specifications
- UPC
- 786261151148
- Action
- SPDT
- Number Of Poles
- 1
- Size
- H=5.00 - W=3.00 IN
- Type
- Spring Wound In Wall Time Switch
- Action
- SPDT
- Base
- Wall Plate
- Contact Rating
- 125-250-277 VAC
- Enclosure
- Single Gang Wall Plate
- Environmental Conditions
- 32-122 F
- Frequency Rating
- 50-60 Hz
- Initiation
- Contact
- Mounting
- Single Gang Wall Plate
- Number Of Poles
- 1
- Operating Temperature
- 32-122 F
- Phase
- 1
- Size
- H=5.00 - W=3.00 IN
- Standard
- cULus
- Sub Brand
- In Wall Timers
- Timing Range
- 0-30 min
- Type
- Spring Wound In Wall Time Switch
