ACH30
SKU: ACH30
MPN: ACH30
Key specs
View all- Amperage Rating
- 2.7 A
- Size
- 33.5 IN
- Type
- Assembled
- Voltage Rating
- 120 V
Description
Product overview

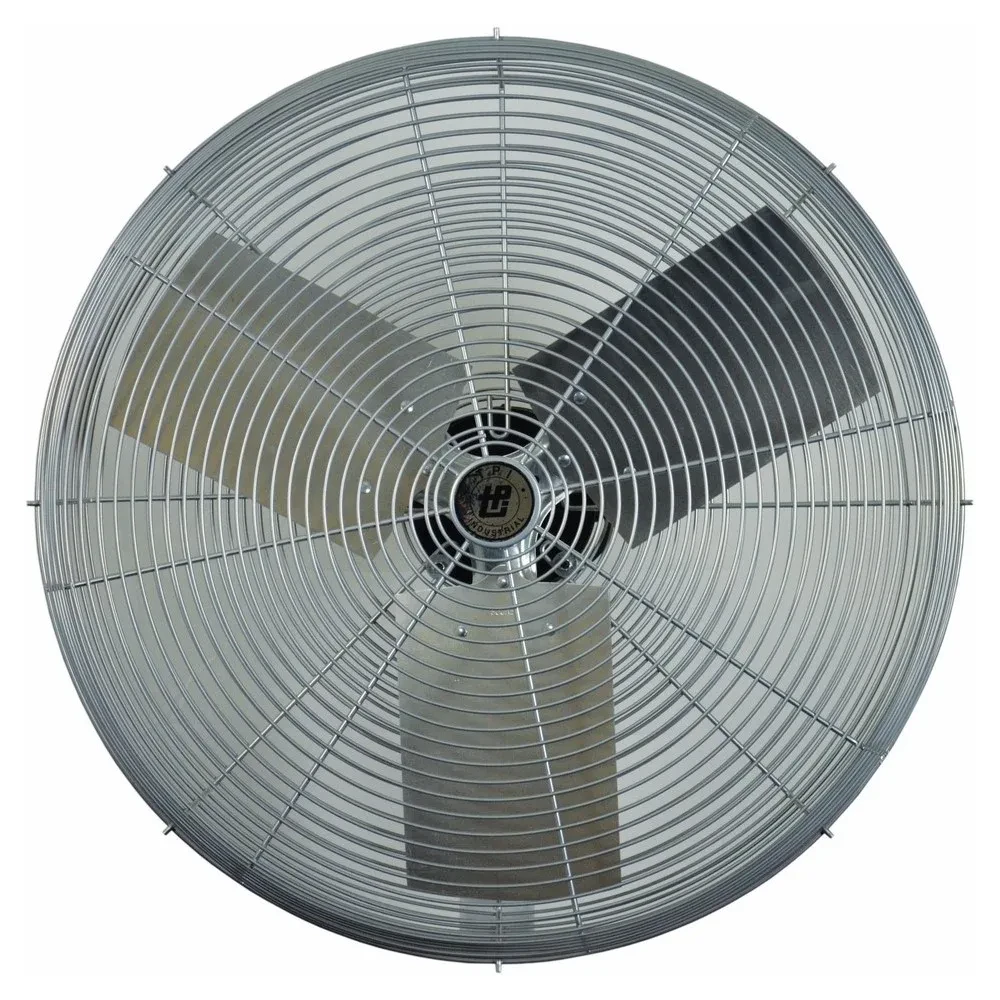

Industrial Assembled Circulator Heads and Mount, Size- 33.5 IN, Blade Size- 30 IN, Flow Rate- 6000 (Low), 7900 (High) CFM, 1/4 HP, 2.7 AMP, Speed- 800 (Low), 1100 (High) RPM, 120 V, Paddle Blade
Industrial Assembled Circulator Heads and Mount, Size- 33.5 IN, Blade Size- 30 IN, Flow Rate- 6000 (Low), 7900 (High) CFM, 1/4 HP, 2.7 AMP, Speed- 800 (Low), 1100 (High) RPM, 120 V, Paddle Blade
Manufacturer highlights
Additional manufacturer notes
- Feed description
- TPI ACH30 30" Standard Ind. Fan Hea
- Invoice description
- 30" Standard Ind. Fan Head 1/4 HP
Specifications
- UPC
- 686334796170
- UNSPSC
- 40101602
- Country of Origin
- US
- Amperage Rating
- 2.7 A
- Size
- 33.5 IN
- Type
- Assembled
- Voltage Rating
- 120 V
- Amperage Rating
- 2.7 A
- Blade Size
- 30 IN
- Drive Type
- Motor
- Flow Rate
- 6000 (Low);7900 (High) CFM
- Horsepower
- 0.25 hp
- Housing Material
- Steel
- Maximum Depth
- 14.5 IN
- Mounting
- Pedestal/Wall/I-Beam/Ceiling/Suspension/Pole
- Number Of Speeds
- 2
- Phase
- 1
- Shaft Diameter
- 1/2 IN
- Size
- 33.5 IN
- Speed
- 800 (Low);1100 (High) RPM
- Standard
- cETLus Listed;OSHA
- Style
- Paddle Blade
- Type
- Assembled
- Voltage Rating
- 120 V
