AL-R2-H12
SKU: AL-R2-H12
MPN: AL-R2-H12
Key specs
View all- Amperage Rating
- 760 A
- Color
- Black
- Material
- Aluminum/Glass/Polyester
- Size
- L=5.50 - H=3.25 - W=2.90 IN
- Type
- Double Primary
- Voltage Rating
- 600 V
Description
Product overview

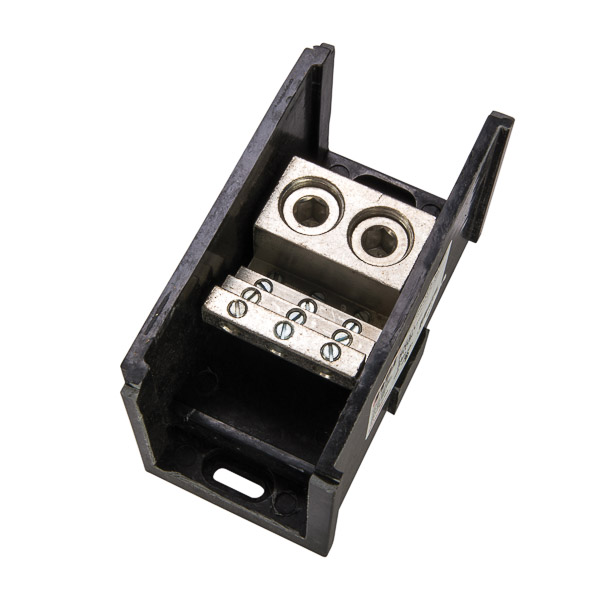

Power Distribution Block (2) 500 MCM-4 AWG Primary (12) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
Power Distribution Block (2) 500 MCM-4 AWG Primary (12) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI AL-R2-H12 (2) 500-6 PRIMARY(12)
- Invoice description
- 2x500-6 LINE 12x4-14 LOAD
Specifications
- UPC
- 662381165725
- Amperage Rating
- 760 A
- Color
- Black
- Material
- Aluminum/Glass/Polyester
- Size
- L=5.50 - H=3.25 - W=2.90 IN
- Type
- Double Primary
- Voltage Rating
- 600 V
- Amperage Rating
- 760 A
- Color
- Black
- Material
- Aluminum/Glass/Polyester
- Mounting
- 2 Mounting Holes
- Number Of Terminals
- 14
- Size
- L=5.50 - H=3.25 - W=2.90 IN
- Standard
- Recognized to UL1059
- Sub Brand
- Connector Blocks
- Type
- Double Primary
- Voltage Rating
- 600 V
- Wire Size
- (2) 500 MCM-4 AWG(Line) - (12) 4-14 AWG(Load)
