AL1-14
SKU: AL1-14
MPN: AL1-14
Key specs
View all- Color
- Gold
- Material
- Aluminum
- Size
- L=2.50 - W=.728 - OD=.531 - ID=.350
- Type
- Standard Barrel - One Hole
- Voltage Rating
- 600 V
Description
Product overview

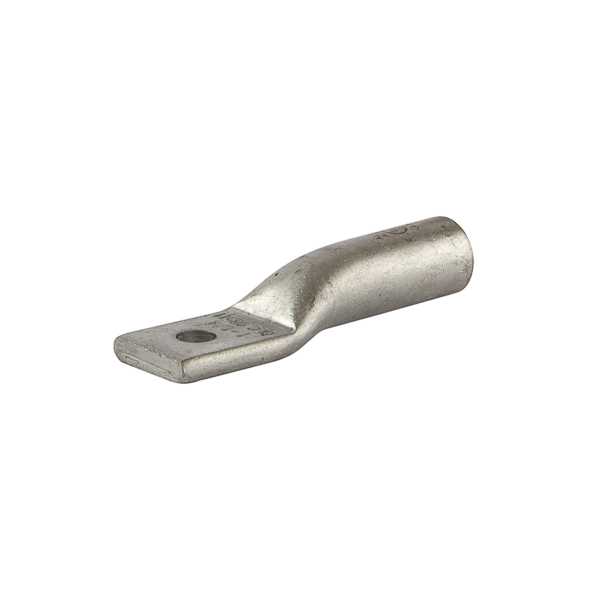

1 HoleStandard BarrelAluminum Compression Lug1 AWG - 1/4 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
1 HoleStandard BarrelAluminum Compression Lug1 AWG - 1/4 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI AL1-14 AL/CU CMP Lug 1 AWG 1/4
- Invoice description
- AL/CU CMP Lug 1 AWG 1/4 Bolt Size
Specifications
- UPC
- 662381030030
- Color
- Gold
- Material
- Aluminum
- Size
- L=2.50 - W=.728 - OD=.531 - ID=.350
- Type
- Standard Barrel - One Hole
- Voltage Rating
- 600 V
- Cable Size
- # 1 AWG (STR)
- Color
- Gold
- Environmental Conditions
- 90 C
- Material
- Aluminum
- Mounting
- 1/4 Mounting Hole
- Number Of Holes
- 1
- Size
- L=2.50 - W=.728 - OD=.531 - ID=.350
- Standard
- UL486
- Stud Size
- 0.25 in
- Sub Brand
- Aluminum Compression
- Type
- Standard Barrel - One Hole
- Voltage Rating
- 600 V
