AL2-38
SKU: AL2-38
MPN: AL2-38
Key specs
View all- Color
- Pink
- Material
- Aluminum
- Size
- L=2.50 - W=.708 - OD=.531 - ID=.311
- Type
- Standard Barrel - One Hole
- Voltage Rating
- 600 V
Description
Product overview

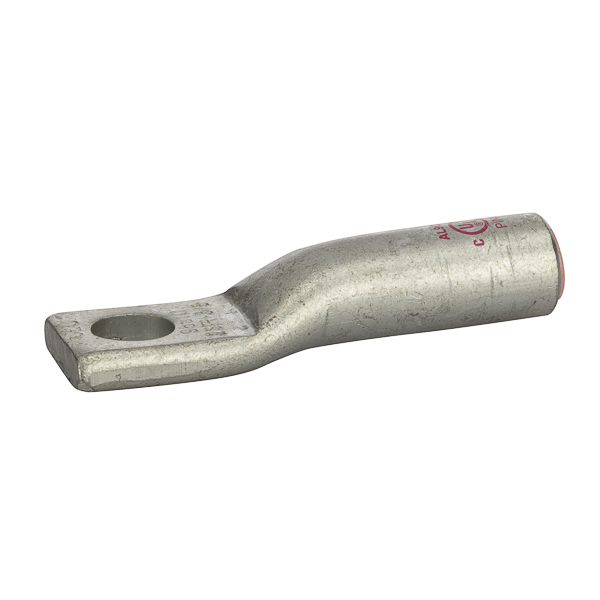

1 HoleStandard BarrelAluminum Compression Lug2 AWG -3/8 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
1 HoleStandard BarrelAluminum Compression Lug2 AWG -3/8 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI AL2-38 AL/CU CMP Lug 2 AWG 3/8
- Invoice description
- AL/CU CMP Lug 2 AWG 3/8 Bolt Size
Specifications
- UPC
- 662381030252
- Color
- Pink
- Material
- Aluminum
- Size
- L=2.50 - W=.708 - OD=.531 - ID=.311
- Type
- Standard Barrel - One Hole
- Voltage Rating
- 600 V
- Cable Size
- # 2 AWG (STR)
- Color
- Pink
- Environmental Conditions
- 90 C
- Material
- Aluminum
- Mounting
- 3/8 Mounting Hole
- Number Of Holes
- 1
- Size
- L=2.50 - W=.708 - OD=.531 - ID=.311
- Standard
- UL486
- Stud Size
- 0.375 in
- Sub Brand
- Aluminum Compression
- Type
- Standard Barrel - One Hole
- Voltage Rating
- 600 V
