Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$79.26 / EA
Local stock: 0
Lead time:
over 7 working days

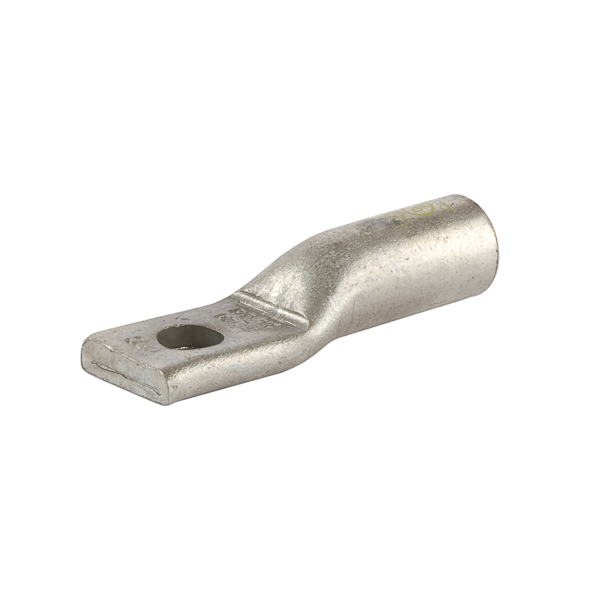

1 HoleStandard BarrelAluminum Compression Lug2/0 AWG -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
1 HoleStandard BarrelAluminum Compression Lug2/0 AWG -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
150
- UPC
- 662381030078
- Color:
- Olive
- Material:
- Aluminum
- Size:
- L=2.80 - W=.937 - OD=.689 - ID=.440
- Type:
- Standard Barrel - One Hole
- Voltage Rating:
- 600 V
- Cable Size:
- 2/0 AWG (STR)
- Color:
- Olive
- Environmental Conditions:
- 90 C
- Material:
- Aluminum
- Mounting:
- 1/2 Mounting Hole
- Number Of Holes:
- 1
- Size:
- L=2.80 - W=.937 - OD=.689 - ID=.440
- Standard:
- UL486
- Stud Size:
- 0.5 in
- Sub Brand:
- Aluminum Compression
- Type:
- Standard Barrel - One Hole
- Voltage Rating:
- 600 V
