AL2/0N

SKU: AL2/0N

MPN: AL2/0N

Key specs

View all
Color
Olive
Material
Aluminum
Size
L=4.79 - W=.937 - OD=.690 - ID=.440
Type
Standard Barrel - Two Hole
Voltage Rating
600 V

Description

Product overview

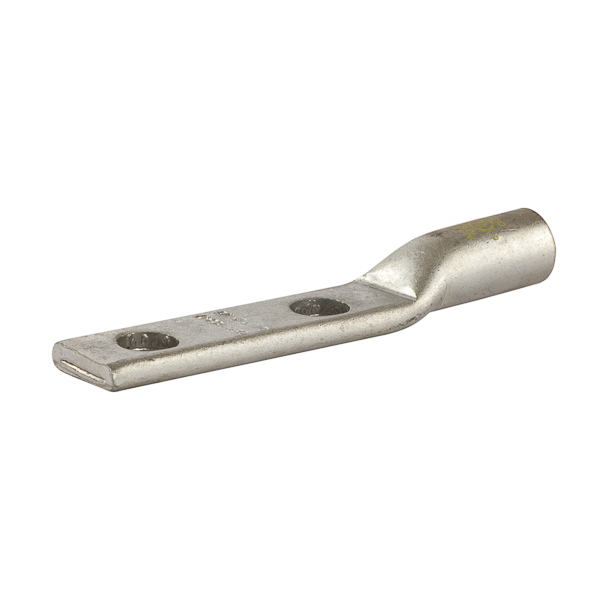

2HoleStandard BarrelAluminum Compression Lug 2/0 AWG -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

2HoleStandard BarrelAluminum Compression Lug 2/0 AWG -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.

Manufacturer highlights

Additional manufacturer notes

Feed description
NSI AL2/0N AL/CU CMP Lug 2/0 AWG NE
Invoice description
AL/CU CMP Lug 2/0 AWG NEMA Mtg Spacing

Specifications

UPC
662381031013
Color
Olive
Material
Aluminum
Size
L=4.79 - W=.937 - OD=.690 - ID=.440
Type
Standard Barrel - Two Hole
Voltage Rating
600 V
Cable Size
2/0 AWG (STR)
Color
Olive
Environmental Conditions
90 C
Material
Aluminum
Mounting
1/2 Mounting Holes
Number Of Holes
2
Size
L=4.79 - W=.937 - OD=.690 - ID=.440
Standard
UL486
Stud Size
0.5 in
Sub Brand
Aluminum Compression
Type
Standard Barrel - Two Hole
Voltage Rating
600 V

Rate this product

Do you have a question about AL2/0N?

AL2/0N

$117.99 / EA
