AL3/0N
SKU: AL3/0N
MPN: AL3/0N
Key specs
View all- Color
- Ruby
- Material
- Aluminum
- Size
- L=5.00 - W=1.02 - OD=.759 - ID=.479
- Type
- Standard Barrel - Two Hole
- Voltage Rating
- 600 V
Description
Product overview

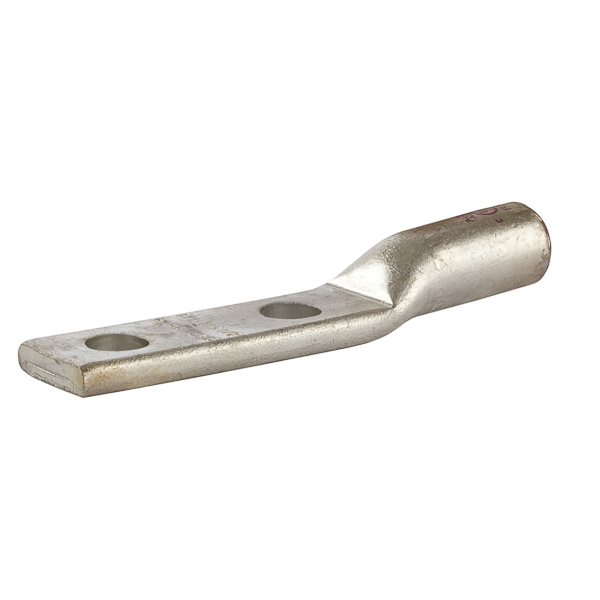

2HoleStandard BarrelAluminum Compression Lug 3/0 AWG -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
2HoleStandard BarrelAluminum Compression Lug 3/0 AWG -1/2 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI AL3/0N AL/CU CMP Lug 3/0 AWG Ne
- Invoice description
- AL/CU CMP Lug 3/0 AWG Nema Mtg Spacing
Specifications
- UPC
- 662381031020
- Color
- Ruby
- Material
- Aluminum
- Size
- L=5.00 - W=1.02 - OD=.759 - ID=.479
- Type
- Standard Barrel - Two Hole
- Voltage Rating
- 600 V
- Cable Size
- 3/0 AWG (STR)
- Color
- Ruby
- Environmental Conditions
- 90 C
- Material
- Aluminum
- Mounting
- 1/2 Mounting Holes
- Number Of Holes
- 2
- Size
- L=5.00 - W=1.02 - OD=.759 - ID=.479
- Standard
- UL486
- Stud Size
- 0.5 in
- Sub Brand
- Aluminum Compression
- Type
- Standard Barrel - Two Hole
- Voltage Rating
- 600 V
