AL600-58
SKU: AL600-58
MPN: AL600-58
Key specs
View all- Color
- Black
- Material
- Aluminum
- Size
- L=5.11 - W=1.95 - OD=1.44 - ID=.921
- Type
- Standard Barrel - One Hole
- Voltage Rating
- 600 V
Description
Product overview

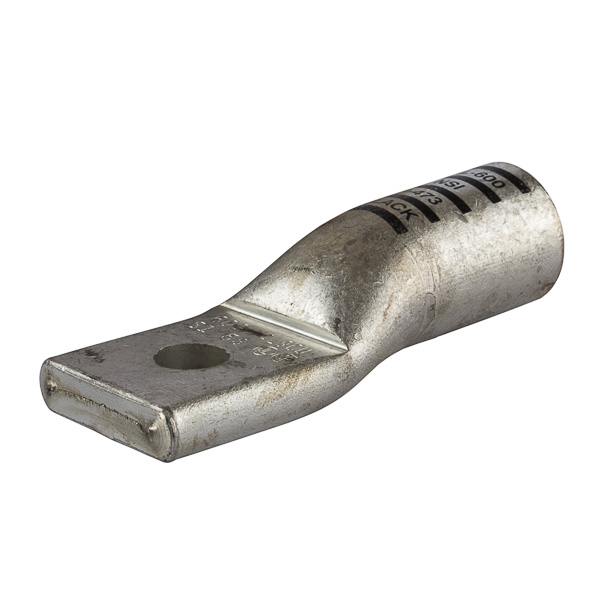

1 HoleStandard BarrelAluminum Compression Lug600MCM -5/8 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
1 HoleStandard BarrelAluminum Compression Lug600MCM -5/8 Bolt Standard BarrelAluminum Compression Lugs is a type ofaluminum compression connector that is produced from high conductivityaluminum tubing.Center stop assures proper cable installation.They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI AL600-58 AL/CU CMP Lug 600 MCM
- Invoice description
- AL/CU CMP Lug 600 MCM 5/8 Bolt Size
Specifications
- UPC
- 662381030191
- Color
- Black
- Material
- Aluminum
- Size
- L=5.11 - W=1.95 - OD=1.44 - ID=.921
- Type
- Standard Barrel - One Hole
- Voltage Rating
- 600 V
- Cable Size
- 600 MCM (STR)
- Color
- Black
- Environmental Conditions
- 90 C
- Material
- Aluminum
- Mounting
- 5/8 Mounting Hole
- Number Of Holes
- 1
- Size
- L=5.11 - W=1.95 - OD=1.44 - ID=.921
- Standard
- UL486
- Stud Size
- 0.625 in
- Sub Brand
- Aluminum Compression
- Type
- Standard Barrel - One Hole
- Voltage Rating
- 600 V
