AM-R1-H12
SKU: AM-R1-H12
MPN: AM-R1-H12
Key specs
View all- Amperage Rating
- 380 A
- Color
- Black
- Material
- Aluminum/Glass/Polyester
- Size
- L=4.00 - H=2.62 - W=1.71 IN
- Type
- Single Primary
- Voltage Rating
- 600 V
Description
Product overview

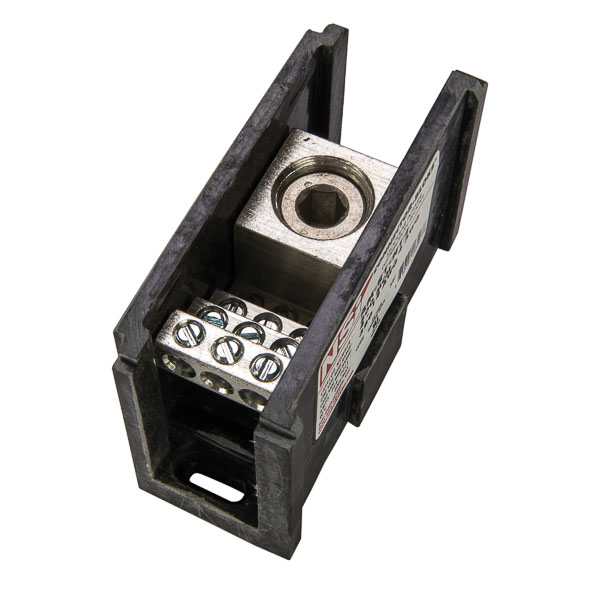

Power Distribution Block (1) 500 MCM-4 AWG Primary (12) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
Power Distribution Block (1) 500 MCM-4 AWG Primary (12) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI AM-R1-H12 (1) 500-6 PRIMARY (12
- Invoice description
- 1x500-6 LINE 12x4-14 LOAD
Specifications
- UPC
- 662381165466
- Amperage Rating
- 380 A
- Color
- Black
- Material
- Aluminum/Glass/Polyester
- Size
- L=4.00 - H=2.62 - W=1.71 IN
- Type
- Single Primary
- Voltage Rating
- 600 V
- Amperage Rating
- 380 A
- Color
- Black
- Material
- Aluminum/Glass/Polyester
- Mounting
- 2 Mounting Holes
- Number Of Terminals
- 13
- Size
- L=4.00 - H=2.62 - W=1.71 IN
- Standard
- Recognized to UL1059
- Sub Brand
- Connector Blocks
- Type
- Single Primary
- Voltage Rating
- 600 V
- Wire Size
- (1) 500 MCM-4 AWG(Line) - (12) 4-14 AWG(Load)
