Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$76.84 / EA
Local stock: 0
Lead time:
over 7 working days

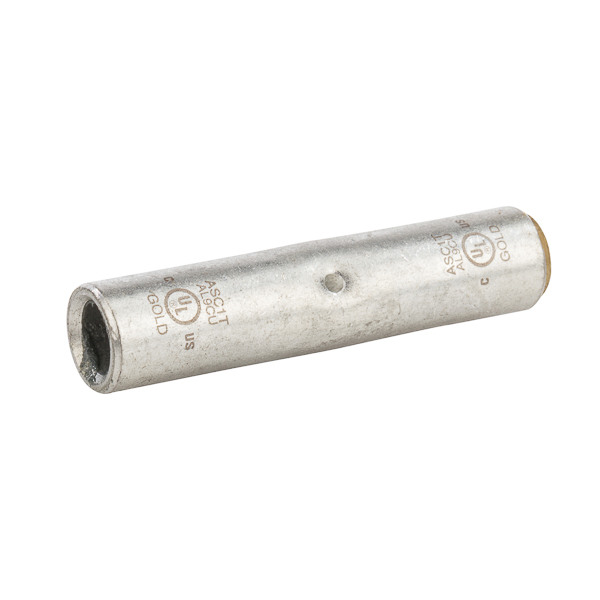

Dual Rated Aluminum Splice 1 AWG Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
Dual Rated Aluminum Splice 1 AWG Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
150
- UPC
- 662381032034
- Color:
- Gold
- Material:
- Aluminum
- Number Of Poles:
- 1
- Size:
- L=2.37 - OD=.527 - ID=.346
- Type:
- Standard Barrel - ALCU Splice
- Voltage Rating:
- 600 V
- Color:
- Gold
- Conductor Range:
- # 1 AWG (STR)
- Environmental Conditions:
- 90 C
- Finish:
- Tin Plated
- Material:
- Aluminum
- Number Of Conductors:
- 2
- Number Of Poles:
- 1
- Size:
- L=2.37 - OD=.527 - ID=.346
- Standard:
- UL486
- Sub Brand:
- Aluminum Compression
- Temperature Rating:
- 90 C
- Type:
- Standard Barrel - ALCU Splice
- Voltage Rating:
- 600 V
