ASC2/0T
SKU: ASC2/0T
MPN: ASC2/0T
Key specs
View all- Color
- Olive
- Material
- Aluminum
- Number Of Poles
- 1
- Size
- L=2.62 - OD=.689 - ID=.440
- Type
- Standard Barrel - ALCU Splice
- Voltage Rating
- 600 V
Description
Product overview

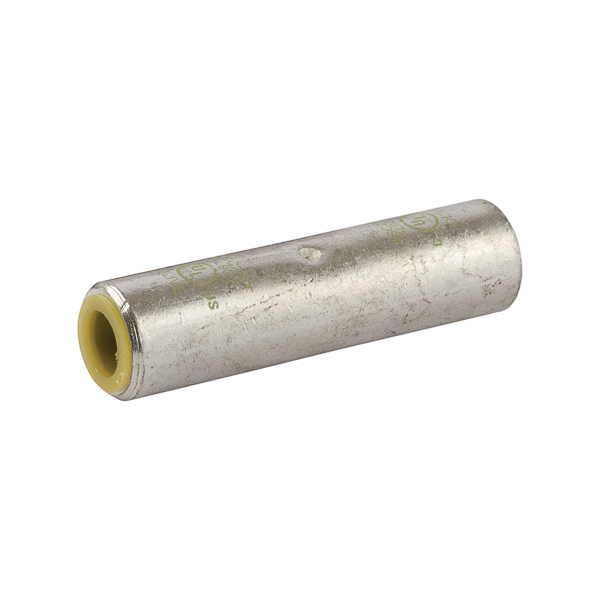

Dual Rated Aluminum Splice 2/0 AWG Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
Dual Rated Aluminum Splice 2/0 AWG Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI ASC2/0T AL/CU CMP Splice 2/0 AW
- Invoice description
- AL/CU CMP Splice 2/0 AWG
Specifications
- UPC
- 662381032058
- Color
- Olive
- Material
- Aluminum
- Number Of Poles
- 1
- Size
- L=2.62 - OD=.689 - ID=.440
- Type
- Standard Barrel - ALCU Splice
- Voltage Rating
- 600 V
- Color
- Olive
- Conductor Range
- 2/0 AWG (STR)
- Environmental Conditions
- 90 C
- Finish
- Tin Plated
- Material
- Aluminum
- Number Of Conductors
- 2
- Number Of Poles
- 1
- Size
- L=2.62 - OD=.689 - ID=.440
- Standard
- UL486
- Sub Brand
- Aluminum Compression
- Temperature Rating
- 90 C
- Type
- Standard Barrel - ALCU Splice
- Voltage Rating
- 600 V
