$61.65 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

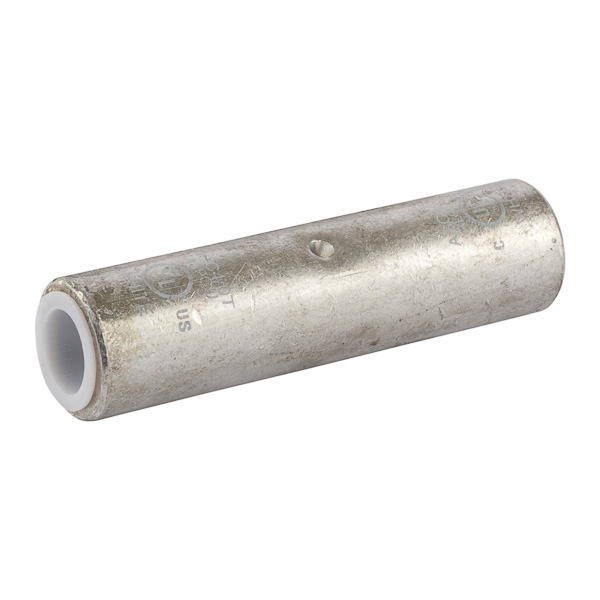

Dual Rated Aluminum Splice 4/0 AWG Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
Dual Rated Aluminum Splice 4/0 AWG Dual Rated Aluminum Splices are a type of aluminum compression connector that is produced from high conductivity aluminum tubing. Center stop assures proper cable installation. Electro-tin plated for corrosion resistance. Color coded and marked with die index information. Pre-filled with oxide inhibitor and capped with color coded cap.
150
- UPC
- 662381032072
- Color:
- White
- Material:
- Aluminum
- Number Of Poles:
- 1
- Size:
- L=3.12 - OD=.838 - ID=.550
- Type:
- Standard Barrel - ALCU Splice
- Voltage Rating:
- 600 V
- Color:
- White
- Conductor Range:
- 4/0 AWG (STR)
- Environmental Conditions:
- 90 C
- Finish:
- Tin Plated
- Material:
- Aluminum
- Number Of Conductors:
- 2
- Number Of Poles:
- 1
- Size:
- L=3.12 - OD=.838 - ID=.550
- Standard:
- UL486
- Sub Brand:
- Aluminum Compression
- Temperature Rating:
- 90 C
- Type:
- Standard Barrel - ALCU Splice
- Voltage Rating:
- 600 V
