B245
SKU: B245
MPN: B245
Key specs
View all- Number Of Poles
- 2
Description
Product overview

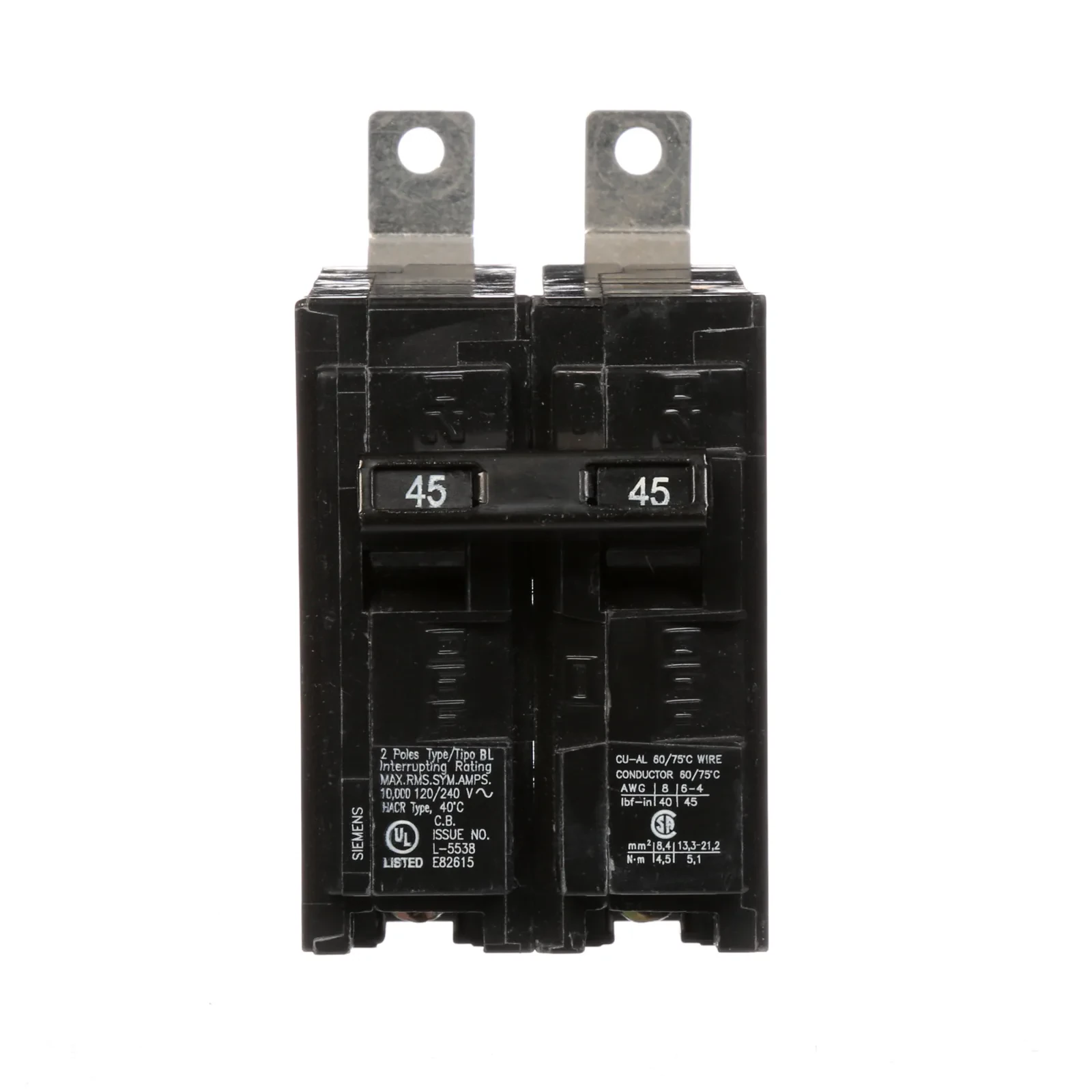

Siemens Low Voltage Molded Case Circuit Breakers Panelboard Mounting 240V Circuit Breakers - Type BL, 2-Pole, 120/240VAC are Circuit Protection Molded Case Circuit Breakers. Type BL Application Electrical Distribution Standard UL 489 Voltage Rating 120/240V Am perage Rating 45A Trip Range Thermal Magnetic Interrupt Rating 10 AIC Number Of Poles 2P
Siemens Low Voltage Molded Case Circuit Breakers Panelboard Mounting 240V Circuit Breakers - Type BL, 2-Pole, 120/240VAC are Circuit Protection Molded Case Circuit Breakers. Type BL Application Electrical Distribution Standard UL 489 Voltage Rating 120/240V Am perage Rating 45A Trip Range Thermal Magnetic Interrupt Rating 10 AIC Number Of Poles 2P
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A B245 BREAKER 45A 2P 120/240V 10
- Invoice description
- BREAKER 45A 2P 120/240V 10K BL
Specifications
- UPC
- 783643263581
- UNSPSC
- 39121601
- Country of Origin
- MX
- Number Of Poles
- 2
- Continuous current / rated value
- 45 A
- Design of the overload release
- THERMAL-MAGNETIC
- Design of the product
- BL
- Height [in]
- 3.5625 in
- Number Of Poles
- 2
- Size of the circuit-breaker
- BL(125A)
- Standard
- ULLISTED/CSA/NOMCERTIFIED
- Suitability for operation
- ELECTRICALDISTRIBUTION
- Supply voltage frequency / rated value / 50/60 Hz
- TRUE
- Voltage / between phase and Ground (GND) / rated value
- 120 V
- Voltage / between phase and phase / rated value
- 240 V
- Width [in]
- 2 in
Videos & documents
Documents
Similar items
Compare alternates in this category before ordering.
Similar item
Q230
Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit Breakers - Type QP/MP, 2-Pole, 120/240VAC are Circuit Protect...
$14.95 / EA
77 available
Similar item
Q2100
Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit Breakers - Type QP/MP, 2-Pole, 120/240VAC are Circuit Protect...
$49.50 / EA
21 available
Similar item
Q220
BREAKER 20A 2P 120/240V 10K QP 10 KAIC SIEMENS
$17.50 / EA
142 available
Specification comparison
Scan the attributes that differ across these alternatives.
Q120 View key specs Hide specs
- SKU
- Q120
- Price
-
$7.10 / EA
- Availability
- 77 available
- Conductor Size
- 14-12AWG(CU)/12-10AWG(AL)
- Connection
- PLUG-IN
- Continuous current / rated value
- 20 A
- Frame
- QP(125A)
- Height [in]
- 2.87 in
- Length
- 3 in
Q230 View key specs Hide specs
- SKU
- Q230
- Price
-
$14.95 / EA
- Availability
- 77 available
- Conductor Size
- 14-6AWG(CU)/12-6AWG(AL)
- Connection
- PLUG-IN
- Continuous current / rated value
- 30 A
- Frame
- QP(125A)
- Height [in]
- 2.87 in
- Length
- 3 in
Q115 View key specs Hide specs
- SKU
- Q115
- Price
-
$7.10 / EA
- Availability
- 97 available
- Conductor Size
- 14-12AWG(CU)/12-10AWG(AL)
- Connection
- PLUG-IN
- Continuous current / rated value
- 15 A
- Frame
- QP(125A)
- Height [in]
- 2.87 in
- Length
- 3 in
Q250 View key specs Hide specs
- SKU
- Q250
- Price
-
$14.95 / EA
- Availability
- 66 available
- Conductor Size
- 8-6AWG(CU)/8-4AWG(AL)
- Connection
- PLUG-IN
- Continuous current / rated value
- 50 A
- Frame
- QP(125A)
- Height [in]
- 2.87 in
- Length
- 3 in
Q2100 View key specs Hide specs
- SKU
- Q2100
- Price
-
$49.50 / EA
- Availability
- 21 available
- Conductor Size
- 4-1/0AWG(CU)/2-1/0AWG(AL)
- Connection
- PLUG-IN
- Continuous current / rated value
- 100 A
- Frame
- QP(125A)
- Height [in]
- 3.12 in
- Length
- 3 in
Q220 View key specs Hide specs
- SKU
- Q220
- Price
-
$17.50 / EA
- Availability
- 142 available
- Conductor Size
- 14-12AWG(CU)/12-10AWG(AL)
- Connection
- PLUG-IN
- Continuous current / rated value
- 20 A
- Frame
- QP(125A)
- Height [in]
- 2.87 in
- Length
- 3 in
| Attribute |
Q120
BREAKER 20A 1P 120V 10K QP SINGL POLE 20 AMP BREAKER 10 KAIC SIEMENS |
Q230
Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit B... |
Q115
BREAKER 15A 1P 120V 10K QP 10 KAIC SIEMENS |
Q250
BREAKER 50A 2P 120/240V 10K QP 10 KAIC |
Q2100
Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit B... |
Q220
BREAKER 20A 2P 120/240V 10K QP 10 KAIC SIEMENS |
|---|---|---|---|---|---|---|
| Price |
$7.10 / EA |
$14.95 / EA |
$7.10 / EA |
$14.95 / EA |
$49.50 / EA |
$17.50 / EA |
| Availability | 77 available | 77 available | 97 available | 66 available | 21 available | 142 available |
| Conductor Size | 14-12AWG(CU)/12-10AWG(AL) | 14-6AWG(CU)/12-6AWG(AL) | 14-12AWG(CU)/12-10AWG(AL) | 8-6AWG(CU)/8-4AWG(AL) | 4-1/0AWG(CU)/2-1/0AWG(AL) | 14-12AWG(CU)/12-10AWG(AL) |
| Connection | PLUG-IN | PLUG-IN | PLUG-IN | PLUG-IN | PLUG-IN | PLUG-IN |
| Continuous current / rated value | 20 A | 30 A | 15 A | 50 A | 100 A | 20 A |
| Frame | QP(125A) | QP(125A) | QP(125A) | QP(125A) | QP(125A) | QP(125A) |
| Height [in] | 2.87 in | 2.87 in | 2.87 in | 2.87 in | 3.12 in | 2.87 in |
| Length | 3 in | 3 in | 3 in | 3 in | 3 in | 3 in |
| Number Of Poles | 1 | 2 | 1 | 2 | 2 | 2 |
| Standard | ULLISTED/CSA/NOMCERTIFIED | ULLISTED/CSA/NOMCERTIFIED | ULLISTED/CSA/NOMCERTIFIED | ULLISTED/CSA/NOMCERTIFIED | ULLISTED/CSA/NOMCERTIFIED | ULLISTED/CSA/NOMCERTIFIED |
| Supply voltage frequency / rated value / 50/60 Hz | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Trip Type | THERMAL-MAGNETIC | THERMAL-MAGNETIC | THERMAL-MAGNETIC | THERMAL-MAGNETIC | THERMAL-MAGNETIC | THERMAL-MAGNETIC |
| Type | QP | QP | QP | QP | QP | QP |
| Type of mounting panel | LOADCENTER | LOADCENTER | LOADCENTER | LOADCENTER | LOADCENTER | LOADCENTER |
| Voltage / between phase and phase / rated value | — | 240 V | — | 240 V | 240 V | 240 V |
| Voltage Rating | 120 V | 120 V | 120 V | 120 V | 120 V | 120 V |
| Width | 1 in | 2 in | 1 in | 2 in | 2 in | 2 in |
