BH-3144
SKU: BH-3144
MPN: BH-3144
Key specs
View all- Amperage Rating
- 0-700A
- Material
- High temperature thermoplastic
- Type
- High speed square body fuse
- Voltage Rating
- 0-1200 V
Description
Product overview

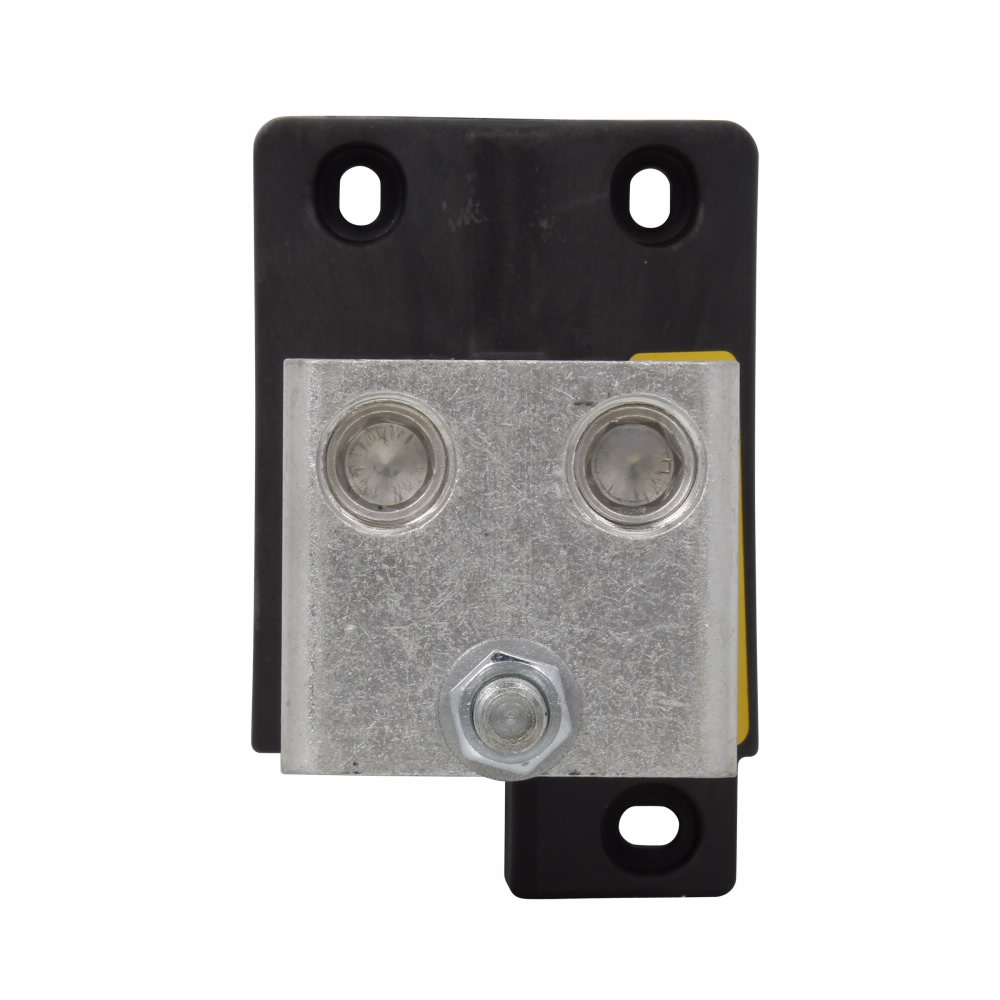

Fuse Block, Modular, 0-700A, 0-1200V, High temperature thermoplastic material, 7/16 in-14 TPI stud connection, 4 AWG to 500 MCM (copper) wire size
Fuse Block, Modular, 0-700A, 0-1200V, High temperature thermoplastic material, 7/16 in-14 TPI stud connection, 4 AWG to 500 MCM (copper) wire size
Manufacturer highlights
Eatons Bussmann series High speed Square Body semiconductors fuses are suitable for the protection of AC and DC Drives, power converters/rectifiers an...
Eatons Bussmann series High speed Square Body semiconductors fuses are suitable for the protection of AC and DC Drives, power converters/rectifiers and variable speed drives.
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS BH-3144 MODULAR BLOCK
- Invoice description
- MODULAR BLOCK
Specifications
- UPC
- 051712350532
- UNSPSC
- 39121624
- Country of Origin
- MX
- Amperage Rating
- 0-700A
- Material
- High temperature thermoplastic
- Type
- High speed square body fuse
- Voltage Rating
- 0-1200 V
- Amperage Rating
- 0-700A
- Connection
- 7/16 In-14 TPI stud
- Dimensions
- 4.1250 IN X 3.0000 IN X 3.0000 IN
- Material
- High temperature thermoplastic
- Standard
- RoHS Compliant,Contact factory
- Sub Brand
- Bussmann Series
- Type
- High speed square body fuse
- Voltage Rating
- 0-1200 V
