$445.80 / EA
manufacturer discounts
learn about discounts
- $399.69 for $1,500.00+
- $384.31 for $2,500.00+
- $368.94 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

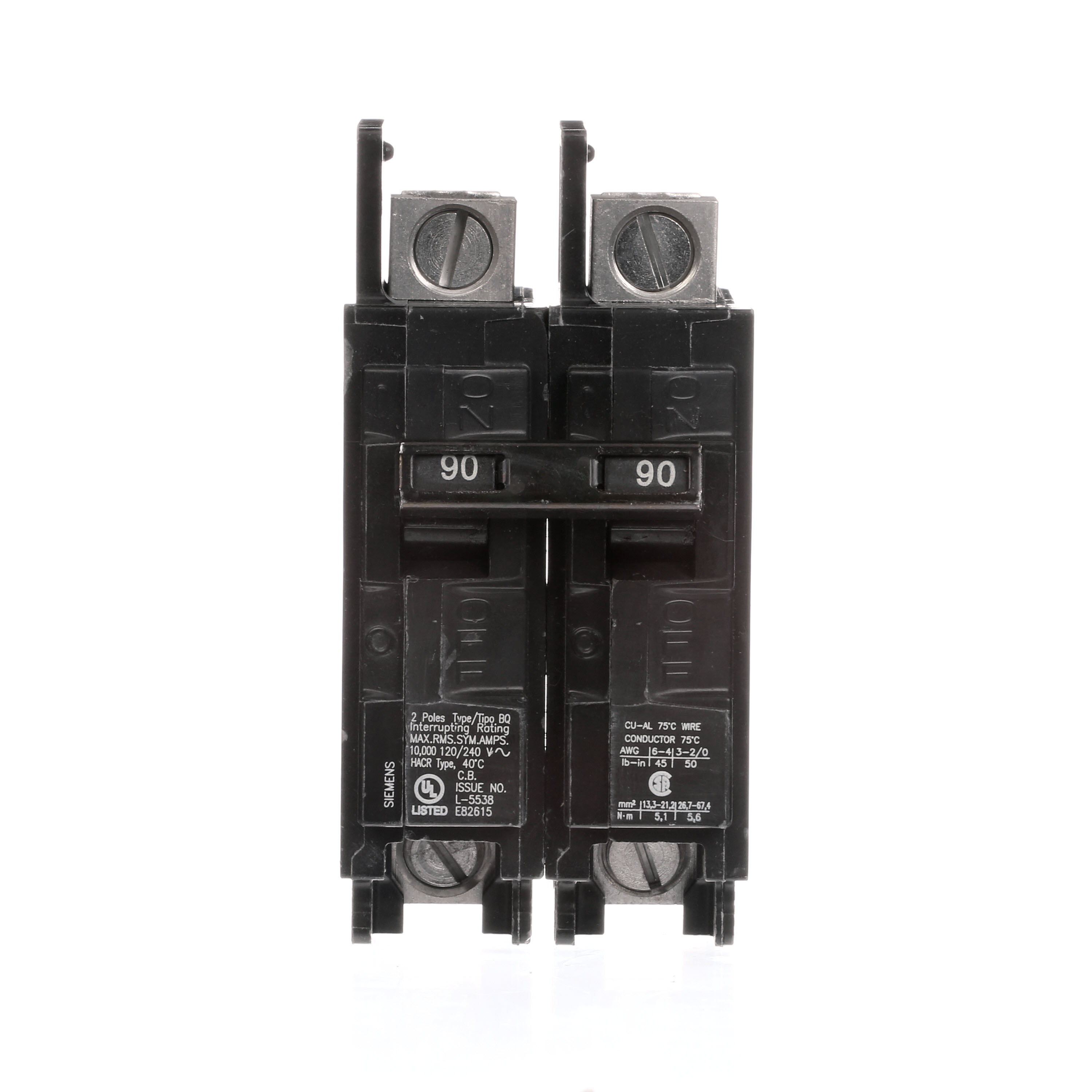

Siemens Low Voltage Molded Case Circuit Breakers General Purpose MCCBs - Type BQ, 2-Pole, 120/240VAC are Circuit Protection Molded Case Circuit Breakers. 2-Pole Common-Trip circuit breaker type BQ. Rated 120/240V (090A) (AIR 10 kA). Special features line side lugs included. Note Load side lugs are included.
Siemens Low Voltage Molded Case Circuit Breakers General Purpose MCCBs - Type BQ, 2-Pole, 120/240VAC are Circuit Protection Molded Case Circuit Breakers. 2-Pole Common-Trip circuit breaker type BQ. Rated 120/240V (090A) (AIR 10 kA). Special features line side lugs included. Note Load side lugs are included.
150
- UPC
- 783643334922
- UNSPSC
- 39121601
- Country of Origin
- MX
- Number Of Poles:
- 2
- Continuous current / rated value:
- 90 A
- Design of the overload release:
- THERMAL-MAGNETIC
- Design of the product:
- BQ
- Height [in]:
- 4 in
- Number Of Poles:
- 2
- Size of the circuit-breaker:
- BQ(125A)
- Standard:
- ULLISTED/CSA/NOMCERTIFIED
- Suitability for operation:
- ELECTRICALDISTRIBUTION
- Supply voltage frequency / rated value / 50/60 Hz:
- TRUE
- Voltage / between phase and Ground (GND) / rated value:
- 120 V
- Voltage / between phase and phase / rated value:
- 240 V
- Width [in]:
- 2 in
