BRY24W34
SKU: BRY24W34
MPN: BRY24W34
Key specs
View all- Amperage Rating
- 15 A
- Color
- Yellow
- Number Of Poles
- 2
- Size
- 1.85 in x 1.85 in x 3.21 in
- Type
- Plugs
- Voltage Rating
- 277 VAC
Description
Product overview

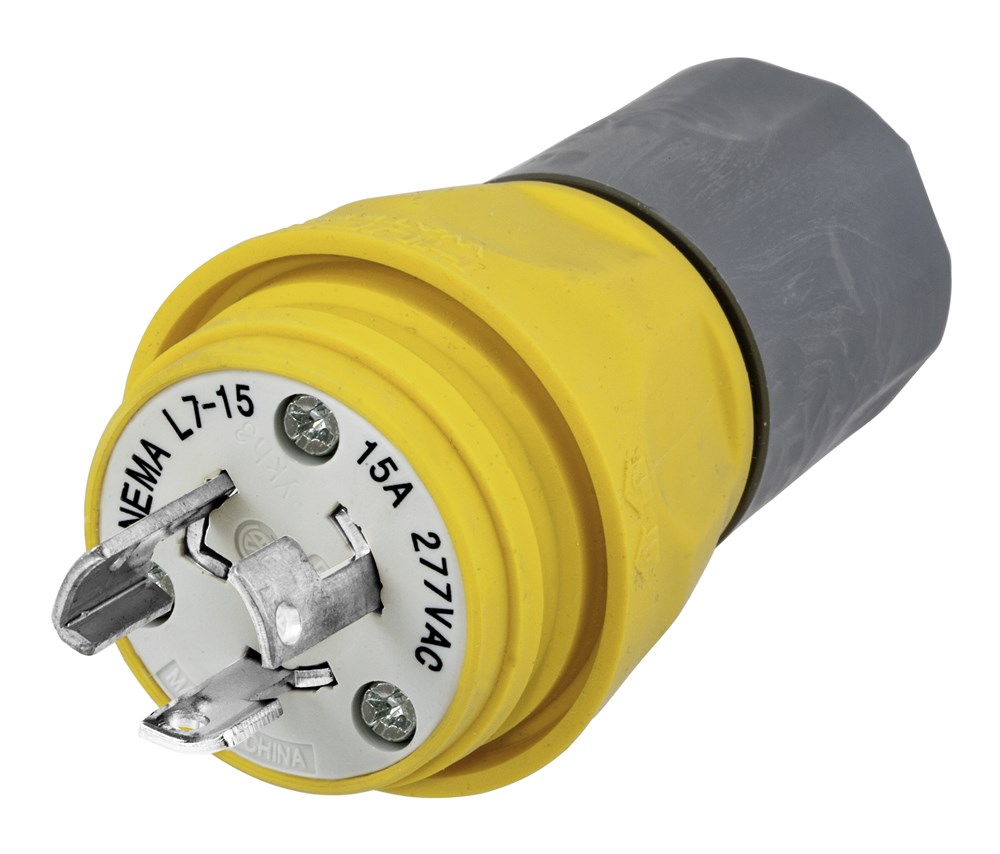

Watertight Devices, Locking Devices, Male Plug, 15A 277V AC, 2-Pole 3-Wire Grounding, L7-15P, Screw Terminal, Yellow, Water/Dust-Tight Housing
Watertight Devices, Locking Devices, Male Plug, 15A 277V AC, 2-Pole 3-Wire Grounding, L7-15P, Screw Terminal, Yellow, Water/Dust-Tight Housing
Manufacturer highlights
Additional manufacturer notes
- Feed description
- BRYANT BRY24W34 WATERTIGHT PLUG, NE
- Invoice description
- WATERTIGHT PLUG, NEMA L7-15P, 15A277VAC
Specifications
- UPC
- 781786378261
- UNSPSC
- 39121403
- Country of Origin
- US
- Amperage Rating
- 15 A
- Color
- Yellow
- Number Of Poles
- 2
- Size
- 1.85 in x 1.85 in x 3.21 in
- Type
- Plugs
- Voltage Rating
- 277 VAC
- Amperage Rating
- 15 A
- Color
- Yellow
- Cord Diameter
- 0.300-0.625 in
- Description - Long
- Watertight Devices, Locking Devices, Male Plug, 15A 277V AC, 2-Pole 3-Wire Grounding, L7-15P, Screw Terminal, Yellow, Water/Dust-Tight Housing
- Description - Short
- Locking Devices, Male Plug, 15A 277V AC, 2-Pole 3-Wire Grounding, L7-15P, Screw Terminal, Yellow, Water/Dust-Tight Housing
- FEATURES - Bullets
- Triple bypass seal keeps water away from electrical connections and works with previously installed devices;Corrosion-resistant connection points;High conductivity brass termination;Cone seal accomodates any cable range;Keyed interior for easy installation
- FV_Current/Amperage Rating Description
- 15 Amp
- FV_Voltage Rating Description
- 277 VAC
- NEMA Rating
- L7-15P
- Number Of Poles
- 2
- Number Of Wires
- 3
- Performance
- Dielectric voltage:2000V AC if rated 300V or less, 3000V AC if rated above 300V;Moisture resistance:UL Listed to 3R, 3RX, 4, 4X, 6, 6P, 12;UV resistance:All exposed materials are UV stabilized;Flammability:UL94V2 (plugs, connectors, and interiors)
- Product Name
- BRY24W34
- Size
- 1.85 in x 1.85 in x 3.21 in
- Standard
- IP69K;Listed to UL498;Certified to CSA C22.2 No. 42;Meets NEMA® WD-1, WD-6, and ANSI Standards;IP66 Suitability;NSF Certified (plugs, connectors and receptacles)
- Type
- Plugs
- Voltage Rating
- 277 VAC
- Voltage Rating Description
- 277 VAC
- Wire Size
- #16/3 SJ to #10/3 SJ, #18/3 S to #12/3 S
