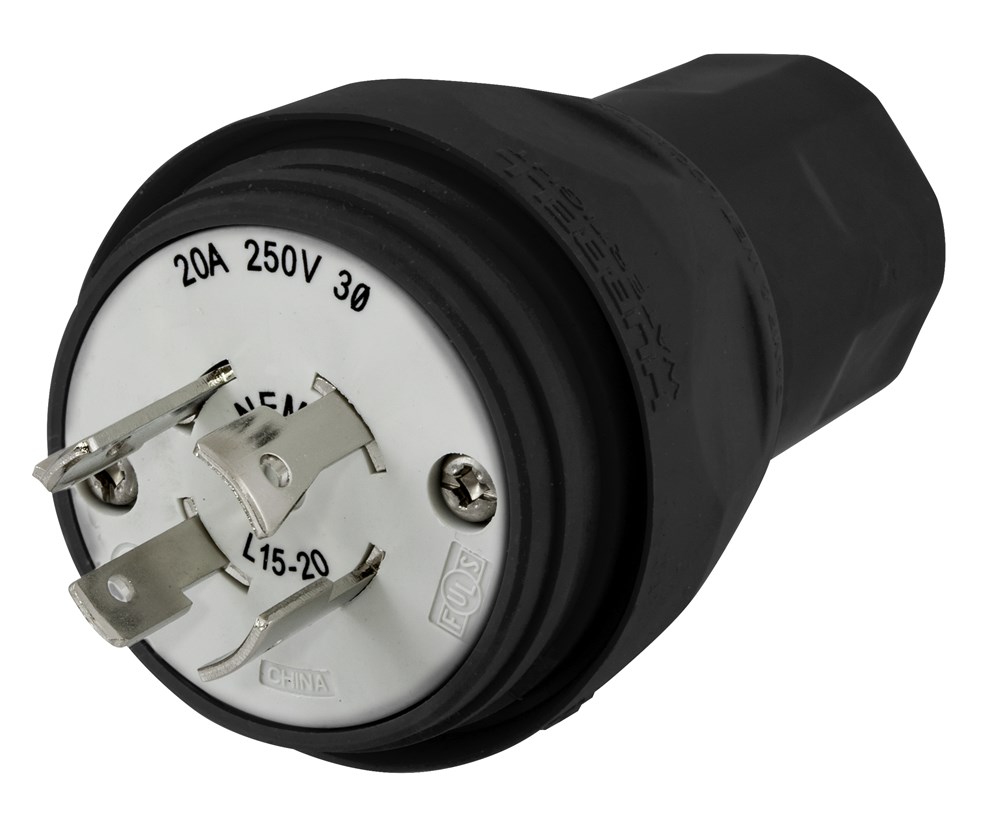

Watertight Devices, Locking Devices, Elastomeric, Male Plug, 20A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, Black, Water/Dust-Tight Housing
Watertight Devices, Locking Devices, Elastomeric, Male Plug, 20A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, Black, Water/Dust-Tight Housing
Watertight Devices, Locking Devices, Elastomeric, Male Plug, 20A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, Black, Water/Dust-Tight Housing

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

BRY26W75BK

Manufacturer
Bryant Electric

$84.77 / EA

manufacturer discounts
learn about discounts

  • $76.29 for $300.00+
  • $72.66 for $500.00+
  • $69.63 for $1,000.00+
Available to order

Local stock: 0
Lead time: over 7 working days

Watertight Devices, Locking Devices, Elastomeric, Male Plug, 20A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, Black, Water/Dust-Tight Housing

Watertight Devices, Locking Devices, Elastomeric, Male Plug, 20A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, Black, Water/Dust-Tight Housing

150

UPC
781786378421
UNSPSC
39121403
Country of Origin
US
Amperage Rating:
20 A
Color:
Black
Number Of Poles:
3
Size:
2.51 in x 2.51 in x 3.96 in
Type:
Plugs
Voltage Rating:
3 Phase 250 VAC
Amperage Rating:
20 A
Color:
Black
Cord Diameter:
0.325-0.875 in
Description - Long:
Watertight Devices, Locking Devices, Elastomeric, Male Plug, 20A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, Black, Water/Dust-Tight Housing
Description - Short:
Locking Devices, Elastomeric, Male Plug, 20A 3- Phase 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, Black, Water/Dust-Tight Housing
FEATURES - Bullets:
Triple bypass seal keeps water away from electrical connections and works with previously installed devices;Corrosion-resistant connection points;High conductivity brass termination;Cone seal accomodates any cable range;Keyed interior for easy installation
FV_Current/Amperage Rating Description:
20 Amp
FV_Voltage Rating Description:
3 Phase 250 VAC
NEMA Rating:
L15-20P
Number Of Poles:
3
Number Of Wires:
4
Performance:
Dielectric voltage:2000V AC if rated 300V or less, 3000V AC if rated above 300V;Moisture resistance:UL Listed to 3R, 3RX, 4, 4X, 6, 6P, 12;UV resistance:All exposed materials are UV stabilized;Flammability:UL94V2 (plugs, connectors, and interiors)
Product Name:
BRY26W75BK
Size:
2.51 in x 2.51 in x 3.96 in
Standard:
IP69K;Listed to UL498;Certified to CSA C22.2 No. 42;Meets NEMA® WD-1, WD-6, and ANSI Standards;IP66 Suitability;NSF Certified (plugs, connectors and receptacles)
Type:
Plugs
Voltage Rating:
3 Phase 250 VAC
Voltage Rating Description:
3 Phase 250 VAC
Wire Size:
Min. cord: #16/3 SJ, #18/3 S, #18/4 SJ, #18/4 S, #18/5 S;Max. cord: #10/3 S, #10/4 S, #10/5 S
