$111.58 / EA
manufacturer discounts
learn about discounts
- $100.42 for $300.00+
- $95.64 for $500.00+
- $91.66 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

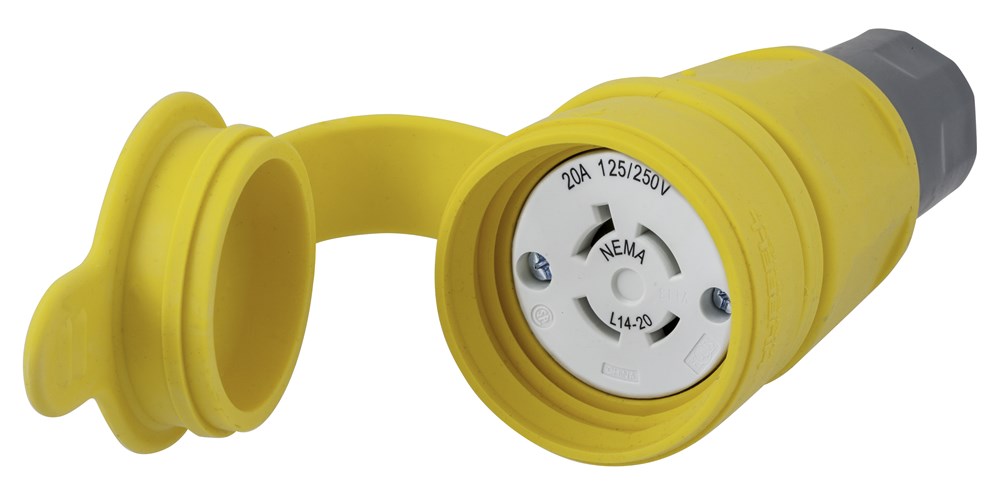

Watertight Devices, Locking Devices, Elastomeric, Female Connector Body, 20A 125/250V, 3-Pole 4-Wire Grounding, L14-20R, Screw Terminal, Yellow, Water/Dust Tight Housing
Watertight Devices, Locking Devices, Elastomeric, Female Connector Body, 20A 125/250V, 3-Pole 4-Wire Grounding, L14-20R, Screw Terminal, Yellow, Water/Dust Tight Housing
150
- UPC
- 781786378582
- UNSPSC
- 39121421
- Country of Origin
- US
- Amperage Rating:
- 20 A
- Color:
- Yellow
- Number Of Poles:
- 3
- Size:
- 2.51 in x 2.51 in x 5.69 in
- Type:
- Connector Body
- Voltage Rating:
- 125/250 VAC
- Amperage Rating:
- 20 A
- Color:
- Yellow
- Cord Diameter:
- 0.325-0.875 in
- Description - Long:
- Watertight Devices, Locking Devices, Elastomeric, Female Connector Body, 20A 125/250V, 3-Pole 4-Wire Grounding, L14-20R, Screw Terminal, Yellow, Water/Dust Tight Housing
- Description - Short:
- Locking Devices, Elastomeric, Male Plug, 20A 125/250V, 3-Pole 4-Wire Grounding, L14-20R, Screw Terminal, Yellow Water/Dust Tight Housing
- FEATURES - Bullets:
- Smooth body design minimizes collection points simplifying the wash down process;Free-floating cap allows unwanted material to wash away during sanitation;Unique cone seal prevents dirt and debris from collecting at the cable entrance;PBT strain relief nut provides unparalleled impact resistance
- FV_Current/Amperage Rating Description:
- 20 Amp
- FV_Voltage Rating Description:
- 125/250 VAC
- NEMA Rating:
- L14-20R
- Number Of Poles:
- 3
- Performance:
- Dielectric voltage:2000V AC if rated 300V or less, 3000V AC if rated above 300V;Moisture resistance:UL Listed to 3R, 3RX, 4, 4X, 6, 6P, 12;UV resistance:All exposed materials are UV stabilized;Flammability:UL94V2 (plugs, connectors, and interiors)
- Product Name:
- BRY27W74
- Size:
- 2.51 in x 2.51 in x 5.69 in
- Standard:
- IP69K;Listed to UL498;Certified to CSA C22.2 No. 42;Meets NEMA® WD-1, WD-6, and ANSI Standards;IP66 Suitability;NSF Certified (plugs, connectors and receptacles)
- Type:
- Connector Body
- Voltage Rating:
- 125/250 VAC
- Voltage Rating Description:
- 125/250 VAC
