$102.62 / EA
manufacturer discounts
learn about discounts
- $92.36 for $300.00+
- $87.96 for $500.00+
- $84.29 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

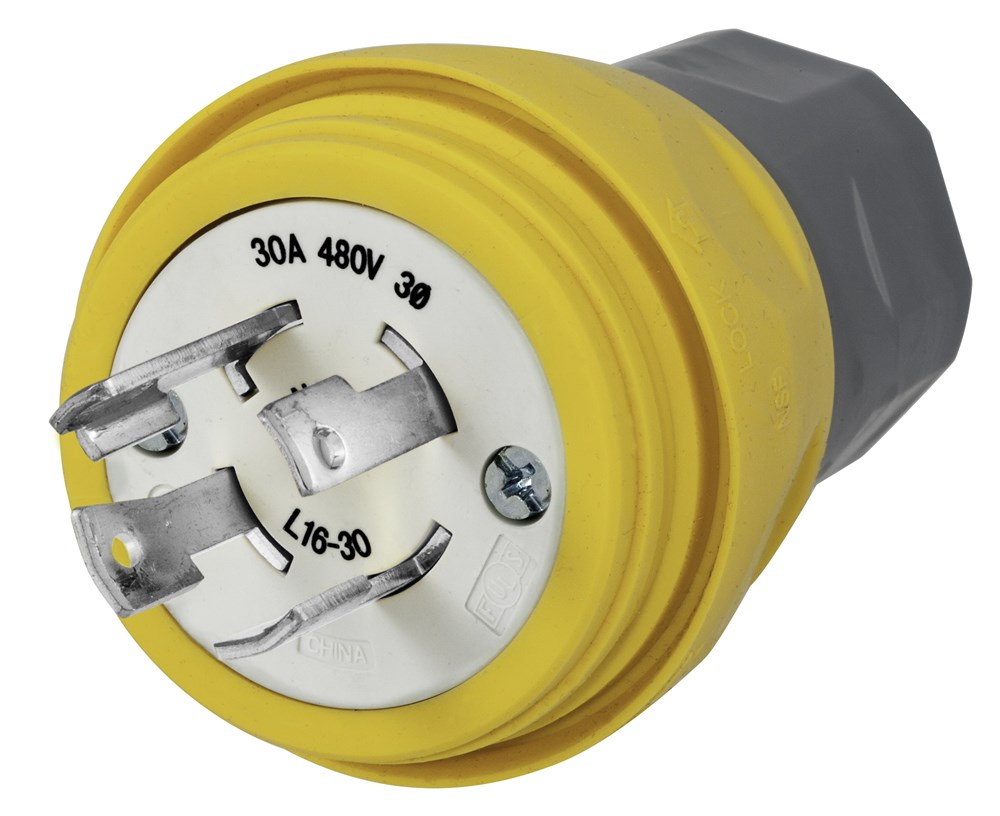

Watertight Devices, Locking Devices, Elastomeric, Male Plug, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-30P, Screw Terminal, Yellow, Water/Dust-Tight Housing
Watertight Devices, Locking Devices, Elastomeric, Male Plug, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-30P, Screw Terminal, Yellow, Water/Dust-Tight Housing
150
- UPC
- 781786378780
- UNSPSC
- 39121403
- Country of Origin
- US
- Amperage Rating:
- 30 A
- Color:
- Yellow
- Number Of Poles:
- 3
- Size:
- 2.77 in x 2.77 in x 3.94 in
- Type:
- Plugs
- Voltage Rating:
- 3 Phase 480 VAC
- Amperage Rating:
- 30 A
- Color:
- Yellow
- Cord Diameter:
- 0.385-1.050 in
- Description - Long:
- Watertight Devices, Locking Devices, Elastomeric, Male Plug, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-30P, Screw Terminal, Yellow, Water/Dust-Tight Housing
- Description - Short:
- Locking Devices, Elastomeric, Male Plug, 30A 3- Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-30P, Screw Terminal, Yellow, Water/Dust-Tight Housing
- FEATURES - Bullets:
- Triple bypass seal keeps water away from electrical connections and works with previously installed devices;Corrosion-resistant connection points;High conductivity brass termination;Cone seal accomodates any cable range;Keyed interior for easy installation
- FV_Current/Amperage Rating Description:
- 30 Amp
- FV_Voltage Rating Description:
- 3 Phase 480 VAC
- NEMA Rating:
- L16-30P
- Number Of Poles:
- 3
- Number Of Wires:
- 4
- Performance:
- Dielectric voltage:2000V AC if rated 300V or less, 3000V AC if rated above 300V;Moisture resistance:UL Listed to 3R, 3RX, 4, 4X, 6, 6P, 12;UV resistance:All exposed materials are UV stabilized;Flammability:UL94V2 (plugs, connectors, and interiors)
- Product Name:
- BRY28W76
- Size:
- 2.77 in x 2.77 in x 3.94 in
- Standard:
- IP69K;Listed to UL498;Certified to CSA C22.2 No. 42;Meets NEMA® WD-1, WD-6, and ANSI Standards;IP66 Suitability;NSF Certified (plugs, connectors and receptacles)
- Type:
- Plugs
- Voltage Rating:
- 3 Phase 480 VAC
- Voltage Rating Description:
- 3 Phase 480 VAC
- Wire Size:
- Min. cords: #12/3 SJ, #16/3 S, #14/4 SJ, #18/4 S, #18/5 S;Max. cord: #8/3 S, #8/4 S, #10/5 S
