$473.20 / EA
manufacturer discounts
learn about discounts
- $425.88 for $300.00+
- $405.60 for $500.00+
- $388.70 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days
Heavy Duty Products, IEC Pin and Sleeve Devices, Female, Connector Body, 60 A 480 VAC, 2-POLE 3-WIRE, Red, Watertight
Heavy Duty Products, IEC Pin and Sleeve Devices, Female, Connector Body, 60 A 480 VAC, 2-POLE 3-WIRE, Red, Watertight
150
- UPC
- 781786781795
- Amperage Rating:
- 60 A
- Color:
- Red
- Material:
- PBT
- Number Of Poles:
- 2
- Size:
- Standard
- Type:
- Connector Body
- Voltage Rating:
- 480 VAC
- Amperage Rating:
- 60 A
- Color:
- Red
- Connection:
- Pressure Screw Terminal
- Current / Amperage Rating:
- 60 A
- Description - Long:
- Heavy Duty Products, IEC Pin and Sleeve Devices, Female, Connector Body, 60 A 480 VAC, 2-POLE 3-WIRE, Red, Watertight
- Description - Short:
- Heavy Duty Products, IEC Pin and Sleeve Devices, Female, Connector Body
- Environmental Conditions:
- IP67
- FEATURES - Bullets:
- IP67 environmental ratings;Impact and corrosion resistant insulated non-metallic housing;Sequential contact engagement to prevent a momentary over-voltage;External strain relief;Glandless water ingress protection
- FV_Current / Amperage Rating:
- 60 A
- FV_Voltage Rating Description:
- 480 VAC
- Ingress Protection:
- IP67
- Insulation:
- Insulated Body
- Material:
- PBT
- Mounting:
- Cord Mounted
- NEMA Rating:
- Non-NEMA
- Number Of Poles:
- 2
- Product Name:
- IEC Pin and Sleeve, Watertight Connector Body, 60 A, 480 VAC
- Series:
- Watertight IP67
- Size:
- Standard
- Standard:
- All constructions are UL Listed & cUL Listed, FileE14633, UL1686 Standard for Pin & Sleeve Configurations, CE
- Temperature Rating:
- Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.
- Type:
- Connector Body
- Voltage - Maximum:
- 600 VAC
- Voltage Rating:
- 480 VAC
- Voltage Rating Description:
- 480 VAC
Recently Viewed
-
BRY360C7W
BRYANT ELECTRIC
Heavy Duty Products, IEC Pin and Sleeve Devices, Female, Connector Body, 60 A 480 VAC, 2-POLE 3-WIRE, Red, Watertight
See more details -
PD-81118-WT
W.A.C. LIGHTING COMPANY
Unfortunately, we do not have a description available for PD-81118-WT. Please call (800) 462-7733<...
See more details -
-
-

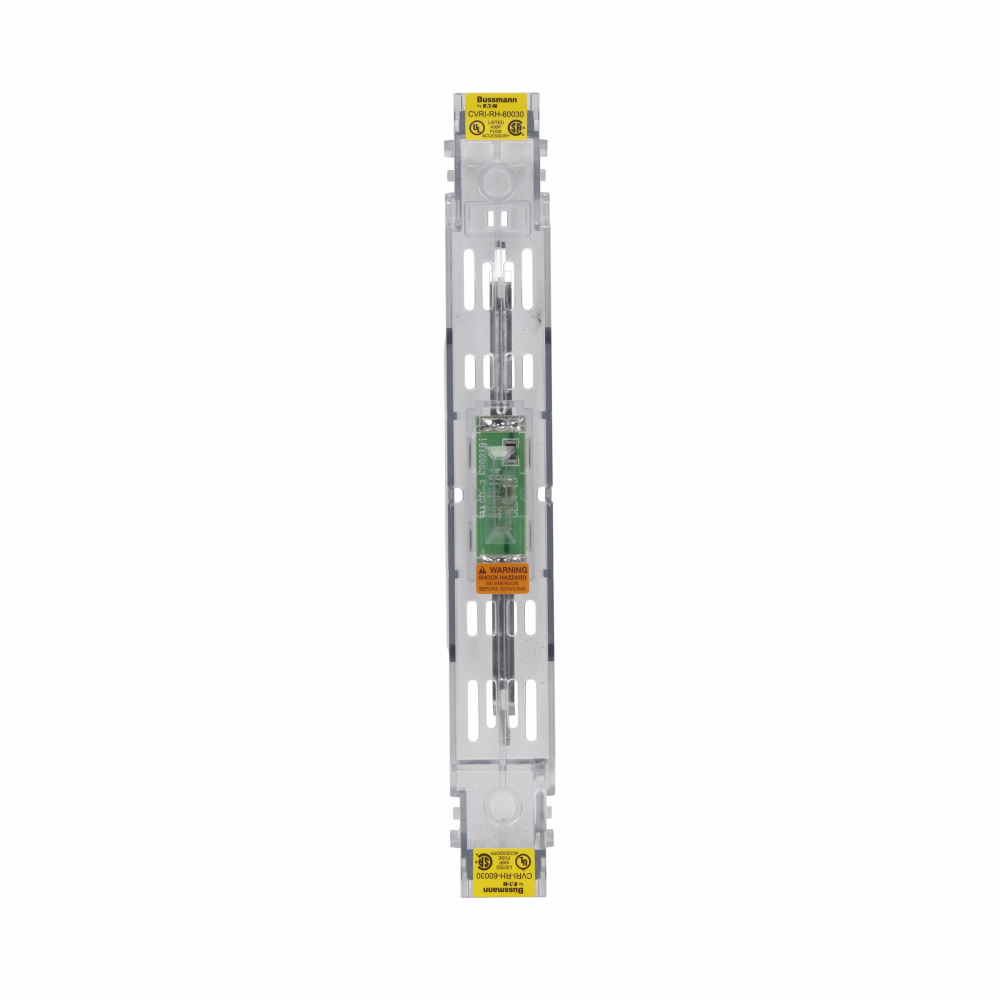

5CLS-12R-Q
