$154.00 / EA
manufacturer discounts
learn about discounts
- $138.60 for $300.00+
- $132.00 for $500.00+
- $126.50 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

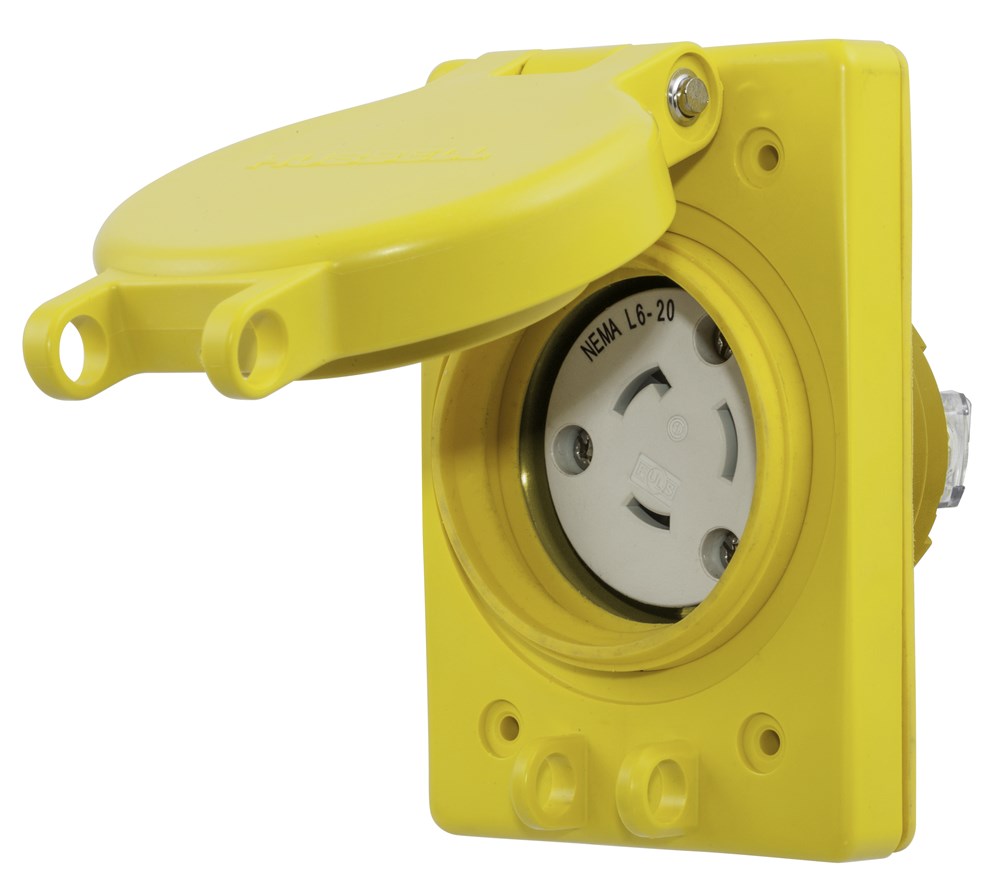

Watertight Series, Locking Receptacle, 20A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-20R, Yellow
Watertight Series, Locking Receptacle, 20A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-20R, Yellow
150
- UPC
- 781786379244
- UNSPSC
- 39121406
- Country of Origin
- US
- Amperage Rating:
- 20 A
- Color:
- Yellow
- Number Of Poles:
- 2
- Size:
- 4.56 in x 3.10 in x 3.45 in
- Type:
- Receptacle
- Voltage Rating:
- 250 V
- Amperage Rating:
- 20 A
- Color:
- Yellow
- Description - Long:
- Watertight Series, Locking Receptacle, 20A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-20R, Yellow
- Description - Short:
- Watertight Series, Locking Receptacle, 20A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-20R, Yellow
- FEATURES - Bullets:
- Impact-resistant PBT material lid and cover plate;Stainless steel mounting hardware;Lockable cover meets OSHA Lockout/Tagout regulations;Thermoplasticelastomer seal
- FV_Current/Amperage Rating Description:
- 20 Amp
- FV_Voltage Rating Description:
- 250 V
- NEMA Rating:
- L6-20R
- Number Of Poles:
- 2
- Number Of Wires:
- 3
- Performance:
- Moisture resistance: UL Listed to 3R, 3RX, 4, 4X, wet and damp locations (portable outlet boxes);UV resistance:All exposed materials are UV stabilized;Flammability:UL94V0 (boxes, covers, and plates)
- Product Name:
- BRY67W48
- Size:
- 4.56 in x 3.10 in x 3.45 in
- Standard:
- IP69K in use;Listed to UL498;Certified to CSA C22.2 No. 42;Meets NEMA® WD-1, WD-6, and ANSI Standards;IP66 Suitability;NSF Certified (plugs, connectors and receptacles)
- Type:
- Receptacle
- Voltage Rating:
- 250 V
- Voltage Rating Description:
- 250 V
- Wire Size:
- #18 AWG to #8 AWG
