$175.00 / EA
manufacturer discounts
learn about discounts
- $157.50 for $300.00+
- $150.00 for $500.00+
- $143.75 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

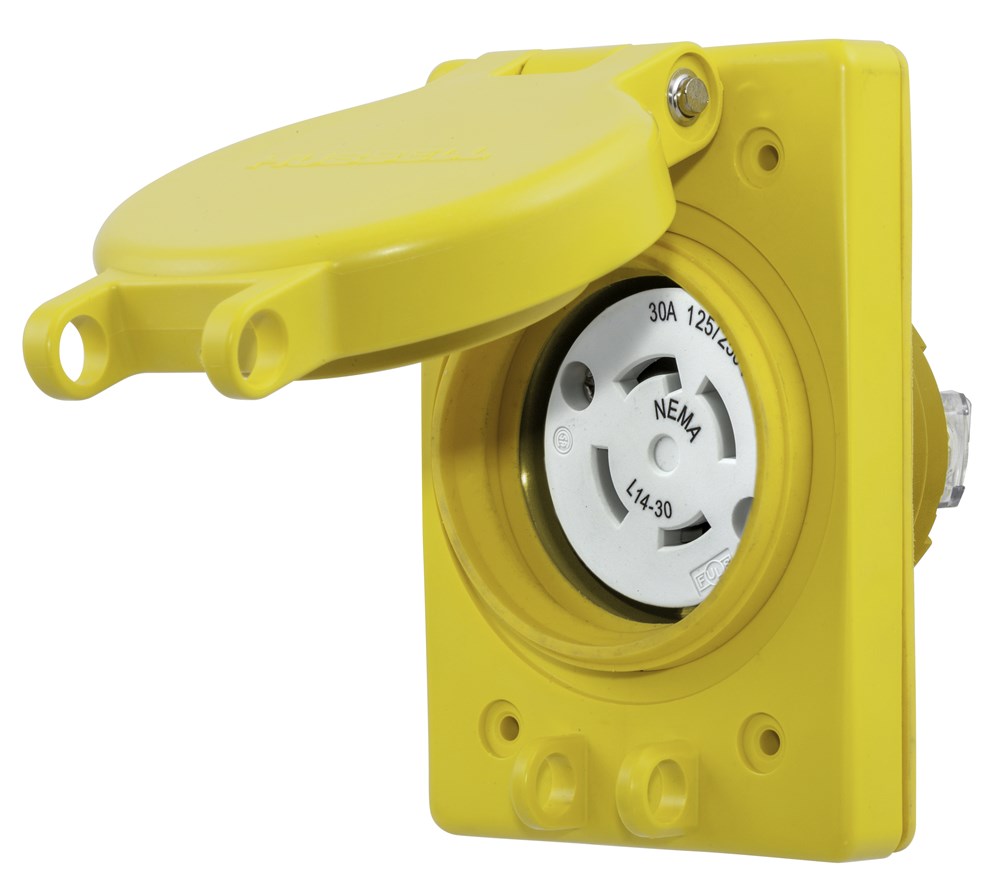

Watertight Series, Locking Receptacle, 30A 125/250V, 3-Pole 4-Wire Grounding, NEMA L14-30R, Yellow
Watertight Series, Locking Receptacle, 30A 125/250V, 3-Pole 4-Wire Grounding, NEMA L14-30R, Yellow
150
- UPC
- 781786379367
- UNSPSC
- 39121406
- Country of Origin
- US
- Amperage Rating:
- 30 A
- Color:
- Yellow
- Number Of Poles:
- 3
- Size:
- 4.56 in x 3.10 in x 3.45 in
- Type:
- Receptacle
- Voltage Rating:
- 125/250 VAC
- Amperage Rating:
- 30 A
- Color:
- Yellow
- Description - Long:
- Watertight Series, Locking Receptacle, 30A 125/250V, 3-Pole 4-Wire Grounding, NEMA L14-30R, Yellow
- Description - Short:
- Watertight Series, Locking Receptacle, 30A 125/250V, 3-Pole 4-Wire Grounding, NEMA L14-30R, Yellow
- FEATURES - Bullets:
- Impact-resistant PBT material lid and cover plate;Stainless steel mounting hardware;Lockable cover meets OSHA Lockout/Tagout regulations;Thermoplasticelastomer seal
- FV_Current/Amperage Rating Description:
- 30 Amp
- FV_Voltage Rating Description:
- 125/250 VAC
- NEMA Rating:
- L14-30R
- Number Of Poles:
- 3
- Number Of Wires:
- 4
- Performance:
- Moisture resistance: UL Listed to 3R, 3RX, 4, 4X, wet and damp locations (portable outlet boxes);UV resistance:All exposed materials are UV stabilized;Flammability:UL94V0 (boxes, covers, and plates)
- Product Name:
- BRY69W74
- Size:
- 4.56 in x 3.10 in x 3.45 in
- Standard:
- IP69K in use;Listed to UL498;Certified to CSA C22.2 No. 42;Meets NEMA® WD-1, WD-6, and ANSI Standards;IP66 Suitability;NSF Certified (plugs, connectors and receptacles)
- Type:
- Receptacle
- Voltage Rating:
- 125/250 VAC
- Voltage Rating Description:
- 125/250 VAC
- Wire Size:
- #18 AWG to #8 AWG
