Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$392.75 / EA
manufacturer discounts
learn about discounts
- $352.12 for $1,500.00+
- $338.58 for $2,500.00+
- $325.03 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days
SIEMENS LOW VOLTAGE SURGE PROTECTION DEVICE (SPD). BOLT-ON SPD MODULE FOR PANELBOARD WITH 3-POLE B FRAME MAIN CIRCUIT BREAKERS. SUITABLE FOR 480V 3-PHASE 3-WIRE VOLTAGE SYSTEMS. 100kA PER PHASE SURGE CAPABILITY.
SIEMENS LOW VOLTAGE SURGE PROTECTION DEVICE (SPD). BOLT-ON SPD MODULE FOR PANELBOARD WITH 3-POLE B FRAME MAIN CIRCUIT BREAKERS. SUITABLE FOR 480V 3-PHASE 3-WIRE VOLTAGE SYSTEMS. 100kA PER PHASE SURGE CAPABILITY.
150
- UPC
- 804766955365
- Material:
- Plastic
- Type:
- Type1SPD
- Voltage Rating:
- 1800 V
- Ambient temperature / during operation / maximum:
- 60 °C
- Connection:
- PanelBoards
- Depth [in]:
- 2.75 in
- Height [in]:
- 3 in
- Lightning impulse current / at (10/350) µs / per path:
- 100 A
- Material:
- Plastic
- Mounting:
- BoltOn
- Operating Temperature:
- -25 °C
- Phase:
- 3
- Short-time withstand current (SCCR) / acc. to UL 508A:
- 200 A
- Sub Brand:
- Boltshield
- Type:
- Type1SPD
- Voltage / between phase and phase / rated value:
- 3000 V
- Voltage Rating:
- 1800 V
- Width [in]:
- 3 in
Recently Viewed
-
BSPD3F100
SIEMENS INDUSTRY, INC.
SIEMENS LOW VOLTAGE SURGE PROTECTION DEVICE (SPD). BOLT-ON SPD MODULE FOR PANELBOARD WITH 3-POLE B FRAME MAIN CIRCUIT BREAKERS. SUITABLE FOR 480V 3-PH...
See more details -

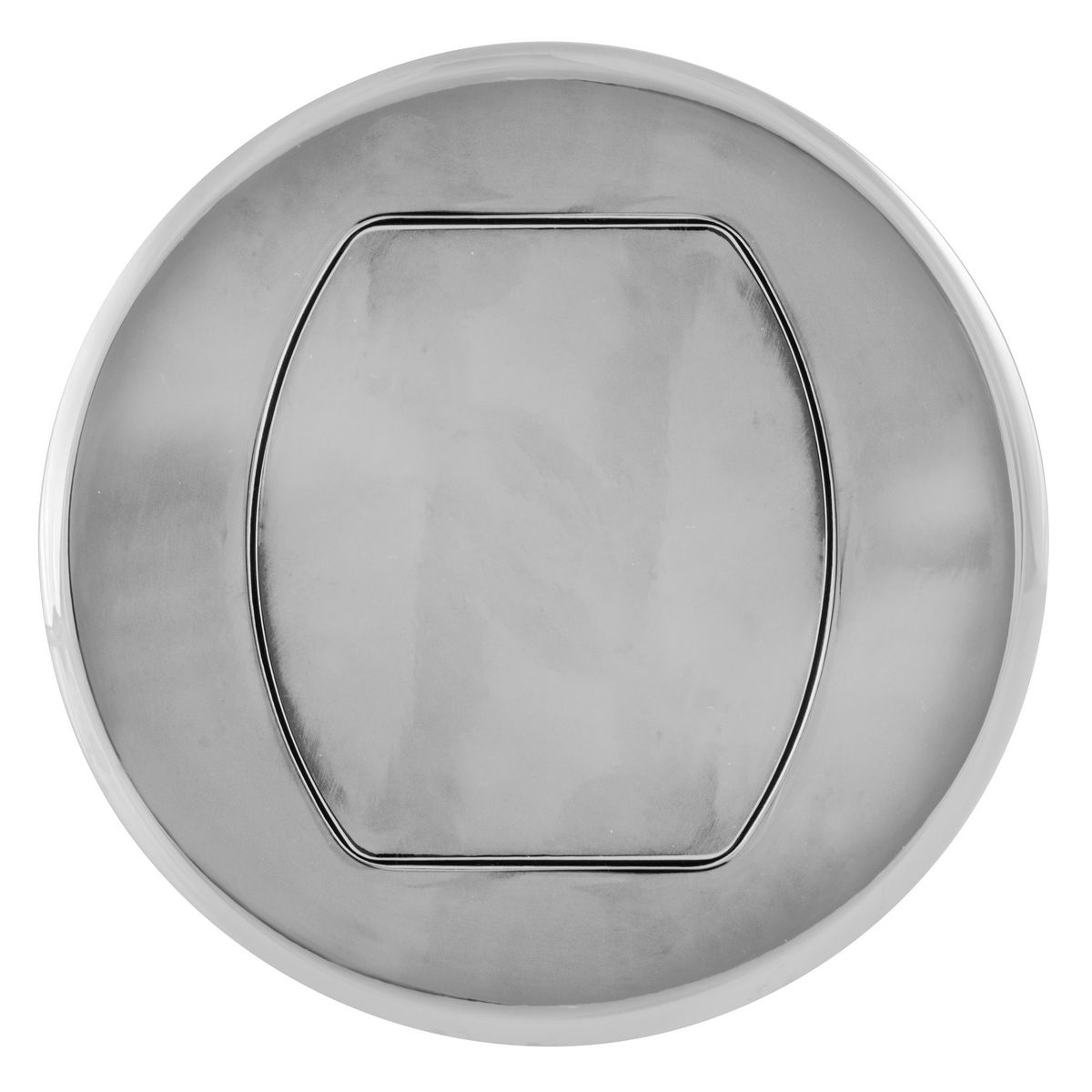

RCT110CH
