C-3/0
SKU: C-3/0
MPN: C-3/0
Key specs
View all- Color
- Orange
- Material
- Copper
- Number Of Poles
- 1
- Size
- L=2.25 - OD=.620 - ID=.490
- Type
- Long Barrel - CU Splice
- Voltage Rating
- 600 V
Description
Product overview

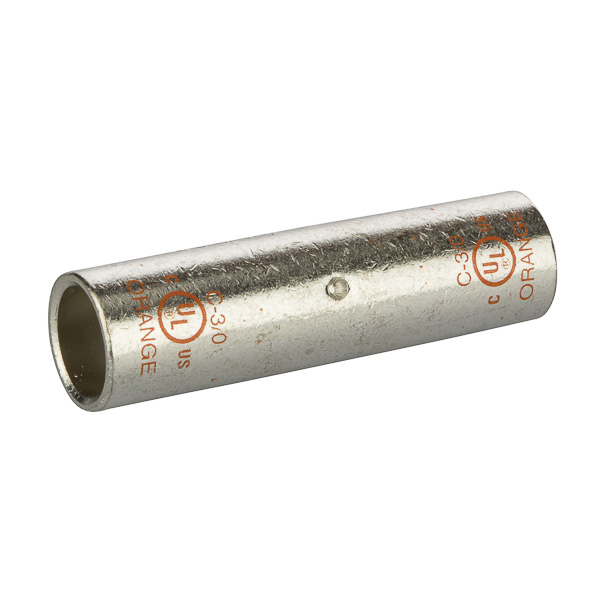

Long Barrel TinnedCopperSplice 3/0 AWG Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Long Barrel TinnedCopperSplice 3/0 AWG Long Barrel Tinned CopperSplices is a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI C-3/0 CU CMP Splice Long 3/0 AW
- Invoice description
- CU CMP Splice Long 3/0 AWG
Specifications
- UPC
- 662381037572
- Color
- Orange
- Material
- Copper
- Number Of Poles
- 1
- Size
- L=2.25 - OD=.620 - ID=.490
- Type
- Long Barrel - CU Splice
- Voltage Rating
- 600 V
- Color
- Orange
- Conductor Range
- 3/0 AWG (STR)
- Environmental Conditions
- 90 C
- Finish
- Tin Plated
- Material
- Copper
- Number Of Conductors
- 2
- Number Of Poles
- 1
- Size
- L=2.25 - OD=.620 - ID=.490
- Standard
- UL486
- Sub Brand
- Copper Compression
- Temperature Rating
- 90 C
- Type
- Long Barrel - CU Splice
- Voltage Rating
- 600 V
