$21.05 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

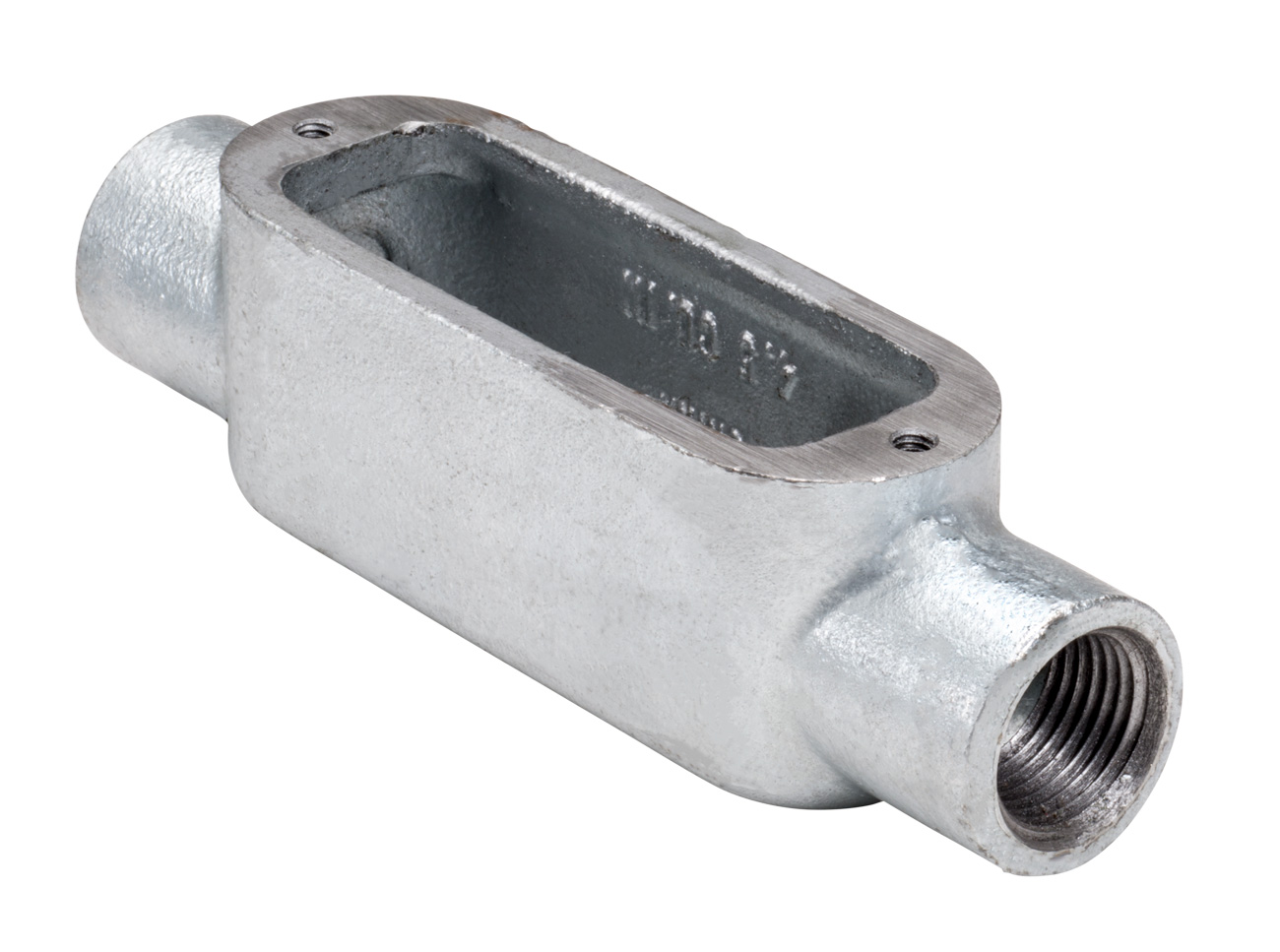

1" Rigid Threaded C Type Conduit Bodies - Hot Dip Galvanized
1" Rigid Threaded C Type Conduit Bodies - Hot Dip Galvanized
Topaz�s high quality line of conduit bodies and covers permit access to conductors for pulling, spli...150
Topaz�s high quality line of conduit bodies and covers permit access to conductors for pulling, splicing and maintenance, provide taps for branch conduit runs and acts as pull outlets for conductor installation. Ideal for interior or exterior projects of any scope, our conduit bodies and covers are offered in malleable iron, strengthened with our Hot Dip Galvanized finish in trade sizes from 1/2� through 4�.The Topaz Rigid C Type Conduit Body�s performance and integrity is assured through by our Hot Dip Galvanizing process, which provides superior, long lasting protection against corrosion from inclement weather conditions. Meets project specifications for the Department of Transportation and Mass Transit.Conforms to finish thickness ASTM A123/123M; UL514A & UL514D listed; NEMA FB1 compliant and meets Federal Spec. A-A-50563.
- Hot dip galvanized finish provides superior protection against severe environmental factors
- Hot dip galvanized finish provides superior protection against severe environmental factors
- UPC
- 751338866454
- UNSPSC
- 39131708
- Country of Origin
- MUL
- Material:
- Malleable Iron
- Type:
- C Type Conduit Body
- Capacity:
- 12.5 CU.IN
- Connection:
- Female Threaded
- Connectors (IN):
- Female Threaded IN
- Finish:
- Hot-Dip Galvanize
- Form:
- C
- Height:
- 1.98 in
- Height (IN):
- 1.98 IN
- Hub Size:
- 1 in
- Label Description:
- RIGID CONDUIT BODY- C TYPE- HOT DIP GALVANIZED
- Length:
- 7.16 IN
- Material:
- Malleable Iron
- Mounting:
- Wall Mount
- Nominal Length Inches:
- 5.31
- Number of Conductors:
- 3
- Size (trade) (IN):
- 1" IN
- Standard:
- UL E195124, ASTM A123/123M, UL514B, NEMA FB1, Federal Specification A-A-50563
- Threaded hub (IN):
- 1 IN
- Type:
- C Type Conduit Body
- WebShop Width (IN):
- 1.79 IN
- Width:
- 1.79 in
- Wire Size:
- 4 AWG
