C4CG

Manufacturer
Topaz Electric

$13.93 / EA

Available to order

Local stock: 0
Lead time: over 7 working days

1-1/4" Threaded C Type Rigid Conduit Body with Cover

1-1/4" Threaded C Type Rigid Conduit Body with Cover

Topaz�s Rigid Threaded C type Conduit Body, with Cover and Gasket is manufactured from copper free a...150

Topaz�s Rigid Threaded C type Conduit Body, with Cover and Gasket is manufactured from copper free aluminum. C type conduit bodies are engineered with a straight through configuration and enable the easiest access for pulling and splicing. Cover and water tight gasket ensures weatherproof installations. Smooth, rounded integral bushings in hubs offers protection for conductor insulation. Excellent ground continuity and corrosion resistance; lightweight aluminum construction; UL listed and available in sizes from 1/2� to 4�.

UPC
751338199316
UNSPSC
39131708
Country of Origin
MUL
Material:
Die-Cast Aluminum
Type:
C Type Conduit Body
Connection:
1-1/4 FNPT IN
Connectors (IN):
1-1/4 FNPT IN
Cover Material:
Stamped Steel
For Use With:
Rigid Conduit
Form:
C
Gasket Material:
Neoprene Rubber
Height:
2.77 in
Height (IN):
2.770 IN
Hub Size:
1.25 in
Label Description:
RIGID CONDUIT BODY
Length:
8.528 IN
Material:
Die-Cast Aluminum
Mounting:
Wall Mount
Nominal Length Inches:
4.69
Number of Conductors:
3
Size (IN):
1 1/4" IN
Size (trade) (IN):
1-1/4" IN
Standard:
UL E170258, CSA Certified, UL 514B, Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
Type:
C Type Conduit Body
WebShop Width (IN):
2.490 IN
Width:
2.49 in
Wire Size:
2 AWG

Recently Viewed

  • placeholder image

    C4CG

    TOPAZ ELECTRIC
    1-1/4" Threaded C Type Rigid Conduit Body with Cover
    See more details
  • placeholder image

    MBLL114CG

    PECO FASTENERS & ELECTRICAL SUPPLIES
    PECO FASTENERS 1-1/4 LL CONDUIT BODY W/C&G 2 PER BOX
    See more details
  • placeholder image

    USC021HD

    ERICO PRODUCTS INC
    USC Universal Strut Clamp for Pipe/Conduit, HD, 0.81"�0.84" OD, 1/2" Pipe
    See more details
  • placeholder image

    52755PNLED

    KICHLER LIGHTING
    Unfortunately, we do not have a description available for 52755PNLED. Please call (800) 462-7733 See more details
  • placeholder image

    0452500

    WESTINGHOUSE LIGHTING

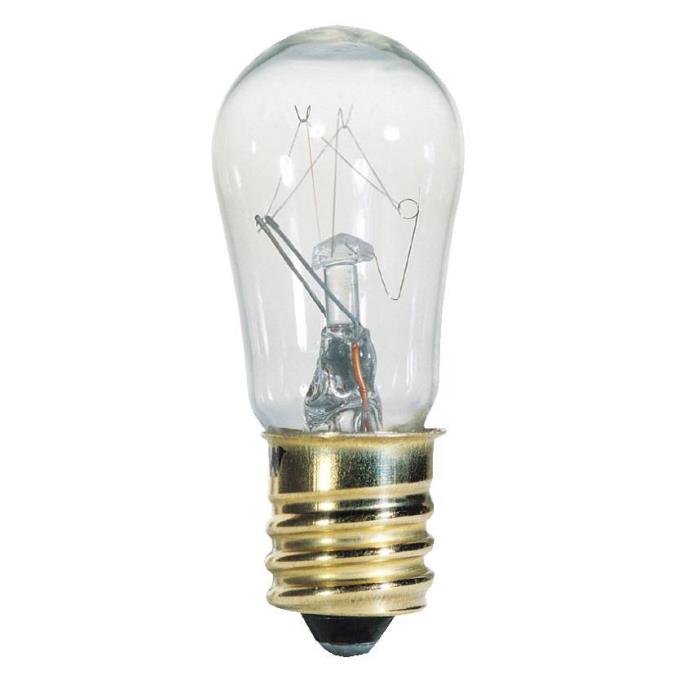

    6W S6 Incandescent Clear E12 (Candelabra) Base, 130 Volt, Box
