C512HH
SKU: C512HH
MPN: C512HH
Key specs
View all- Action
- SPDT
- Number Of Poles
- 1
- Size
- H=5.00 - W=3.00 IN
- Type
- Spring Wound In Wall Time Switch-Commercial Grade
Description
Product overview

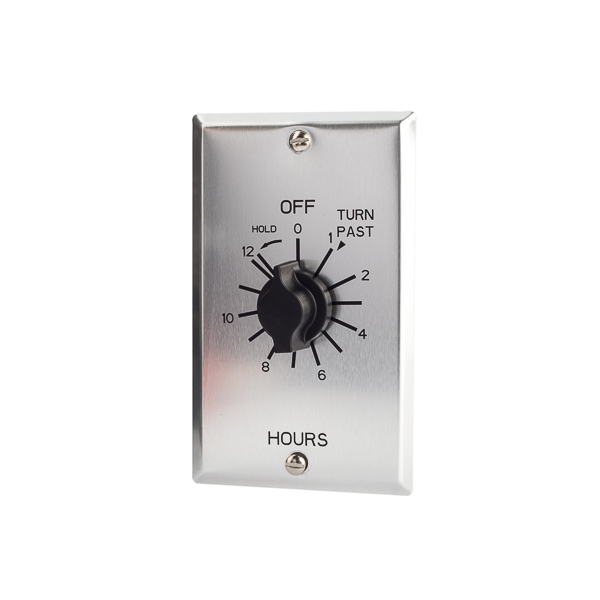

Tork 12 Hour Twist Timer w/ Hold - Metal Wallplate APPLICATIONS: Whole House Fans, Indoor/Outdoor Lighting, Bathroom Fans and Lights, Self Storage. FEATURES: COLOR: Brushed-metal aluminum. VARIABLE TIMING: Twist knob for time ON setting. Time ON lengths from 15 minutes to 12 hour vary by model. HOLD FEATURE: Has position for constant ON (Hold). EASY SET : No adjustments. Just wire and go, EASY WIRING: No neutral required. Great for retrofit, Use as single or in multi-gang box with no de-rating....
Tork 12 Hour Twist Timer w/ Hold - Metal Wallplate APPLICATIONS: Whole House Fans, Indoor/Outdoor Lighting, Bathroom Fans and Lights, Self Storage. FEATURES: COLOR: Brushed-metal aluminum. VARIABLE TIMING: Twist knob for time ON setting. Time ON lengths from 15 minutes to 12 hour vary by model. HOLD FEATURE: Has position for constant ON (Hold). EASY SET : No adjustments. Just wire and go, EASY WIRING: No neutral required. Great for retrofit, Use as single or in multi-gang box with no de-rating. SWITCH TYPE: SPST WALL PLATE: Includes real metal wall plate with screw mounting, to add extra security for commercial applications. CONTACT RATINGS: VOLTAGE: 125/250/277VAC 50/60Hz RESISTIVE: 125VAC Rating: 20A 250VAC Rating: 10A 277VAC Rating: 10A INDUCTIVE: 125VAC Rating: 20A 250VAC Rating: 10A 277VAC Rating: 10A TUNGSTEN: 125 VAC Rating: 7A MOTOR: 125VAC Rating: 1HP 250VAC Rating: 2HP
Manufacturer highlights
Additional manufacturer notes
- Short name
- TORK
- Feed description
- NSI C512HH Interval Timer 12 Hr Hol
- Invoice description
- Interval Timer 12 Hr Hold Metal
Specifications
- UPC
- 786261155146
- Action
- SPDT
- Number Of Poles
- 1
- Size
- H=5.00 - W=3.00 IN
- Type
- Spring Wound In Wall Time Switch-Commercial Grade
- Action
- SPDT
- Base
- Wall Plate
- Contact Rating
- 125-250-277 VAC
- Enclosure
- Single Gang Wall Plate
- Environmental Conditions
- 32-122 F
- Frequency Rating
- 50-60 Hz
- Initiation
- Contact
- Mounting
- Single Gang Wall Plate
- Number Of Poles
- 1
- Operating Temperature
- 32-122 F
- Phase
- 1
- Size
- H=5.00 - W=3.00 IN
- Standard
- cULus
- Sub Brand
- In Wall Timers
- Timing Range
- 12 h
- Type
- Spring Wound In Wall Time Switch-Commercial Grade
