$15.23 / EA
manufacturer discounts
learn about discounts
- $13.66 for $1,300.00+
- $12.92 for $2,000.00+
- $12.39 for $3,000.00+
Local stock: 0
Lead time:
1
-
2
working days
nVent CADDY Cat HP J-Hook, PG, Painted, Blue, 3" dia
nVent CADDY Cat HP J-Hook, PG, Painted, Blue, 3" dia
nVent CADDY Cat HP J-Hooks are the heart of the nVent CADDY Cat HP System. The J-Hooks have a wide b...150
nVent CADDY Cat HP J-Hooks are the heart of the nVent CADDY Cat HP System. The J-Hooks have a wide base design and smooth beveled edges to provide a large bending radius for current and future high-performance data cables and fibre optics. nVent CADDY Cat HP J-Hooks are available in a wide range of sizes to offer a solution that meets industry standards for Cat 6A and easily accommodates Cat 7, large-diameter fibre optic, innerduct and coax cable. Individual nVent CADDY Cat HP J-Hooks can be fastened directly to the building structure or can be used to expand existing nVent CADDY Cat HP J-Hook cable supports. The J-Hooks are designed to provide a strong and stable pathway support installation.
- Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic
- Rounded edges on J-Hooks provide proper bend radius support for high performance data cables
- Multiple color options aid in the identification and organization of the pathway application
- Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
- Compliant with UL� 2043 and suitable for use in air handling (plenum) spaces
- Tested according to DIN 4102-12
- Complies with EN 50174-2
- Meets ISO�/IEC 14763-2, ANSI�/TIA 568 and ANSI�/TIA 569
- Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic
- Rounded edges on J-Hooks provide proper bend radius support for high performance data cables
- Multiple color options aid in the identification and organization of the pathway application
- Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
- Compliant with UL� 2043 and suitable for use in air handling (plenum) spaces
- Tested according to DIN 4102-12
- Complies with EN 50174-2
- Meets ISO�/IEC 14763-2, ANSI�/TIA 568 and ANSI�/TIA 569
- UPC
- 782856706342
- UNSPSC
- 39131709
- Country of Origin
- NL
- Material:
- Steel
- Type:
- nVent CADDY Cat HP J-Hook System
- Finish:
- Pregalvanized; Painted
- Height (Imperial) <Nom>:
- 6.618 in
- Material:
- Steel
- Standard:
- UL, cUL
- Static Load (lb):
- 60 lb
- Sub Brand:
- CADDY
- Type:
- nVent CADDY Cat HP J-Hook System
Recently Viewed
-
-
230380
MEYDA LIGHTING
Unfortunately, we do not have a description available for 230380. Please call (800) 462-7733 f...
See more details -
5369NHG
COOPER WIRING DEVICES
Eaton Arrow Hart auto grip hospital grade straight blade connector, #16-12 AWG, 20A, Industrial, 125V, Back wire, Black and white, Brass, Thermoplasti...
See more details -
337005WSP
KICHLER LIGHTING

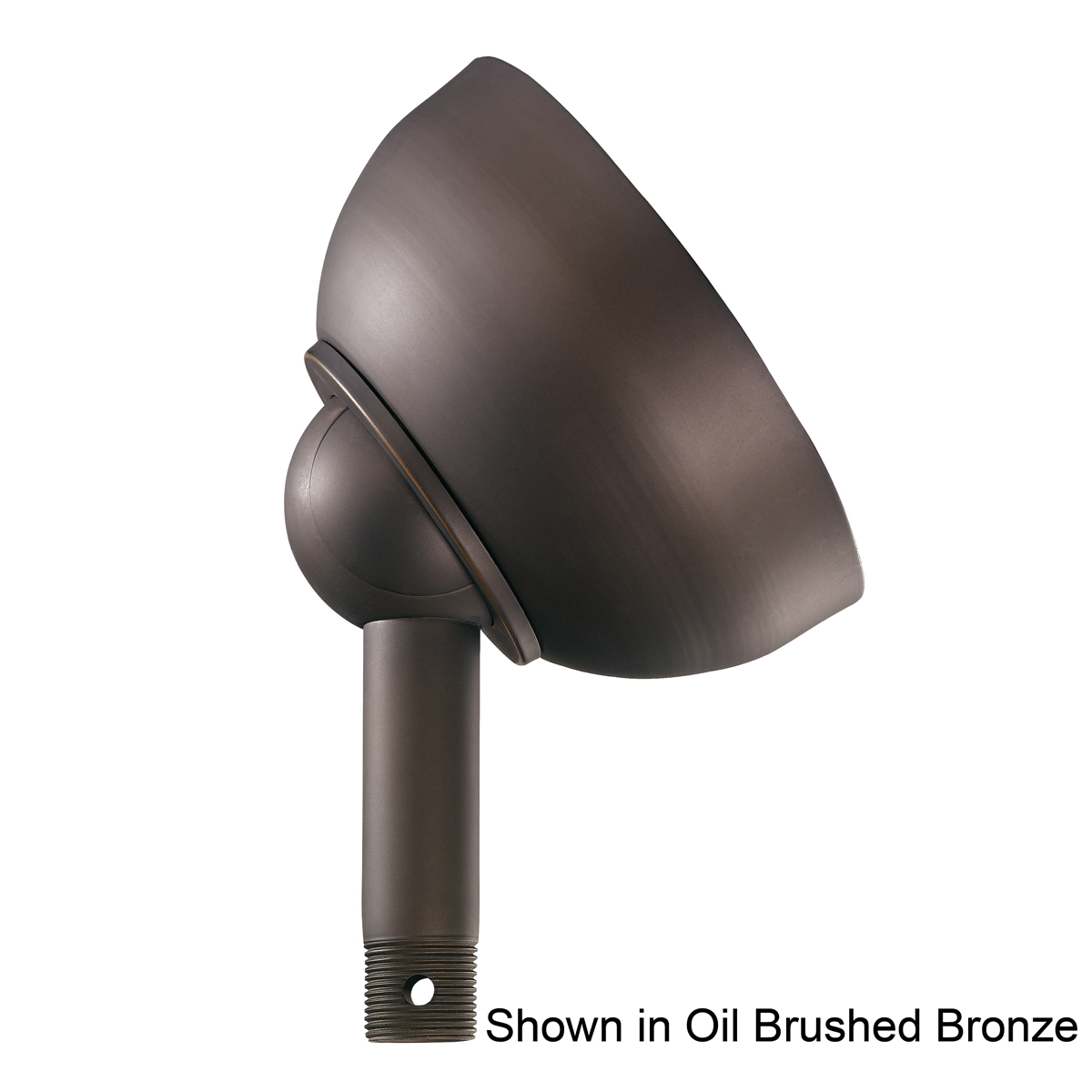

60 degree Slope Adapter for sloped or vaulted ceilings from 0 - 60 degrees. Includes stabilized mounting system. Designed for Indoor or Outdoor use an...
