CB-19
SKU: CB-19
MPN: CB-19
Key specs
View all- Size
- L=5.810 - H=.719 - W=.371 IN
- Type
- Neutral Bars
Description
Product overview

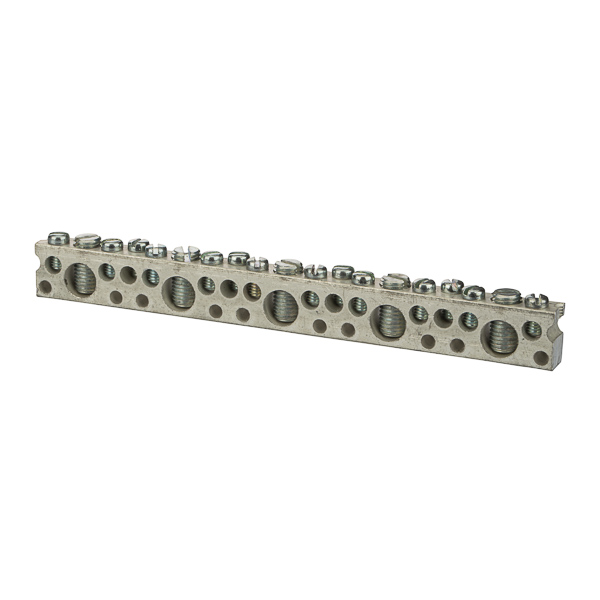

Combination Connector 19 Circuits Multiple combination connectors are made fromaluminum and are tin-plated for low contactresistance. Suitable for use with both copper andaluminum conductors. Each connector containsa combination of 1/0-14 AWG and 6-14 AWGwire holes.
Combination Connector 19 Circuits Multiple combination connectors are made fromaluminum and are tin-plated for low contactresistance. Suitable for use with both copper andaluminum conductors. Each connector containsa combination of 1/0-14 AWG and 6-14 AWGwire holes.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI CB-19 19 CIRCUIT COMB.CONNECTOR
- Invoice description
- 19 Circuit Comb.Connector
Specifications
- UPC
- 662381009029
- Size
- L=5.810 - H=.719 - W=.371 IN
- Type
- Neutral Bars
- Conductor Material
- Aluminum
- Conductor Size
- (5) 1/0-14 AWG (14) 6-14 AWG
- Length
- 5.81 in
- Size
- L=5.810 - H=.719 - W=.371 IN
- Sub Brand
- Mechanical Connector
- Type
- Neutral Bars
