$139.44 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

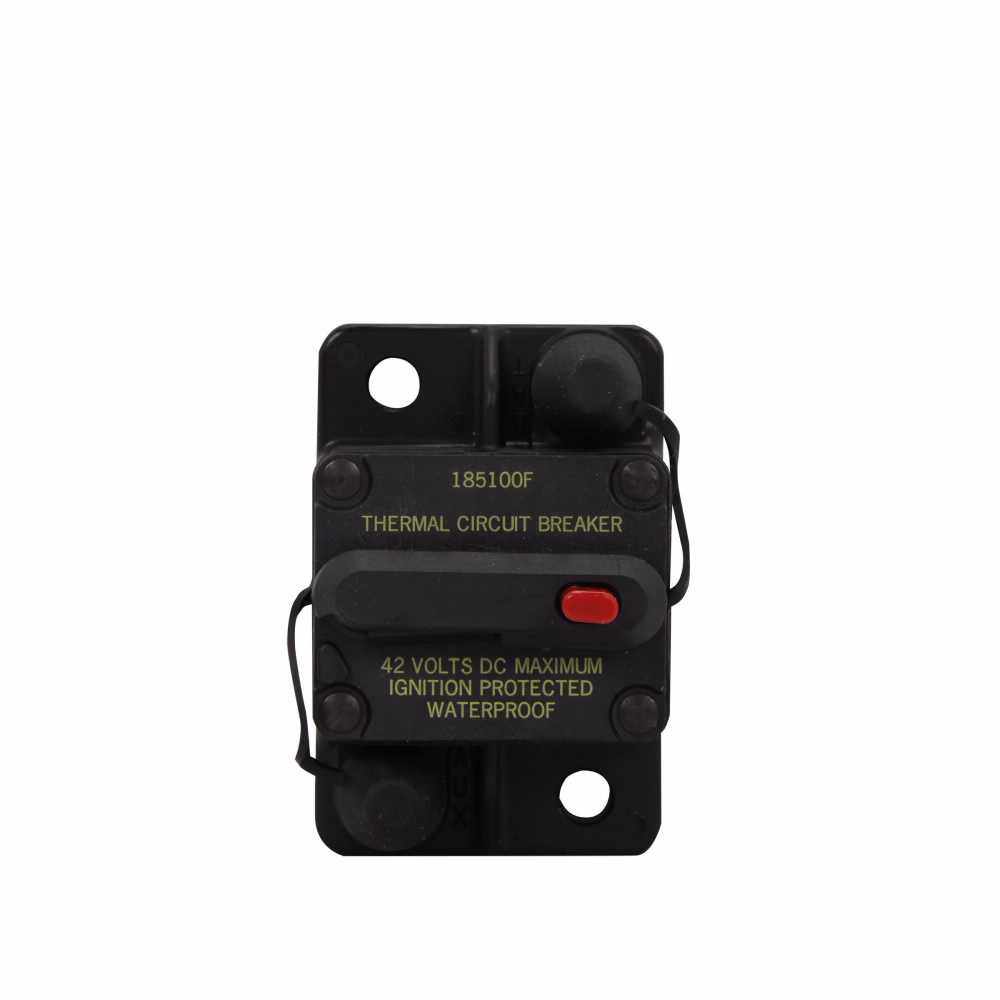

Eaton Bussmann series CB185 automotive circuit breaker, Switchable, 48 Vdc, 80A, 3 kAIC, Automotive, type III, high amp, Waterproof
Eaton Bussmann series CB185 automotive circuit breaker, Switchable, 48 Vdc, 80A, 3 kAIC, Automotive, type III, high amp, Waterproof
Type I, Type II and Type III circuit breakers match the ATM and ATC fuse footprint. Ultra-thin, to f...150
Type I, Type II and Type III circuit breakers match the ATM and ATC fuse footprint. Ultra-thin, to fit in tight spaces, they're the smallest automotive circuit breakers on the market. Provide voltage and current limiting functionality and are designed for the on- and off-highway requirements of trucks, RVs, construction, agriculture, ATV and material handling equipment.
- UPC
- 051712614450
- UNSPSC
- 39121609
- Country of Origin
- MX
- Amperage Rating:
- 80 A
- Material:
- Waterproof
- Type:
- Automotive circuit breaker
- Amperage Rating:
- 80 A
- Dimensions:
- 1.9000 IN X 1.6800 IN X 2.9000 IN
- Material:
- Waterproof
- Standard:
- RoHS Compliant,Contact factory
- Sub Brand:
- Bussmann Series
- Type:
- Automotive circuit breaker
KAZ
$210.53 /ea
600V Actuator
| Attributed Data | Included |
|---|---|
| Connection | Ferrule End X Ferrule End Yes |
| Size | 0.41 In Diameter X 2.00 In Length Yes |
| Standard | UL Yes |
| Type | Actuator Yes |
SC-25-BUSS
$9.81 /ea
Eaton Bussmann series SC fuse, Current-limiting time-delay fuse, Rejection style, 25 A, Class G, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 10 kAIC at 300 Vdc,100 kAIC at 480 Vac, Standard, 480 V, 300 Vdc
| Attributed Data | Included |
|---|---|
| Class | G Yes |
| Connection | Ferrule End X Ferrule End Yes |
| Dimensions | 1.6200 IN X 0.4100 IN X 0.4100 IN Yes |
| Interrupt Rating | 100000 Amp (RMS Symmetrical), 10000 Amp (DC) Yes |
| Size | 0.41 In Diameter X 1.62 In Length Yes |
| Standard | CE Marked,RoHS Compliant Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Fuse Yes |
FNM-6/10
$5.18 /ea
Eaton Bussmann series FNM fuse, Time-delay Midget fuse, 0.6 A, Dual, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 125 Vac,35 AIC at 250 Vac, Nickel-plated bronze endcap, Standard, 250 V
| Attributed Data | Included |
|---|---|
| Class | Supplemental Yes |
| Connection | Ferrule End X Ferrule End Yes |
| Dimensions | 1.5000 IN X 0.4100 IN X 0.4100 IN Yes |
| Element | Dual Yes |
| Interrupt Rating | 35 Amp at 250 Vac, 10000 Amp at 125 Vac Yes |
| Material | Nickel-plated bronze endcap Yes |
| Size | 13/32 In Diameter X 1-1/2 In Length Yes |
| Standard | RoHS Compliant,CE Marked Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Fuse Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
KAZ
600V Actuator
$210.53 / EA
|
SC-25-BUSS
Eaton Bussmann series SC fuse, Current-limiting time-delay fuse, Rejection style, 25 A, Class G, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 10 kAIC at 300 Vdc,100 kAIC at 480 Vac, Standard, 480 V, 300 Vdc
$9.81 / EA
|
FNM-6/10
Eaton Bussmann series FNM fuse, Time-delay Midget fuse, 0.6 A, Dual, Non-indicating, Ferrule end x ferrule end, 10 kAIC at 125 Vac,35 AIC at 250 Vac, Nickel-plated bronze endcap, Standard, 250 V
$5.18 / EA
|
|
| Attributed Data | |||
| Amperage Rating | 6/10 A 6/10 A | 10 A 10 A | 25 A 25 A |
| Class | G G | Supplemental Supplemental | |
| Connection | Ferrule End X Ferrule End Ferrule End X Ferrule End | ||
| Dimensions | 1.5000 IN X 0.4100 IN X 0.4100 IN 1.5000 IN X 0.4100 IN X 0.4100 IN | 1.6200 IN X 0.4100 IN X 0.4100 IN 1.6200 IN X 0.4100 IN X 0.4100 IN | |
| Element | Dual Dual | ||
| Interrupt Rating | 35 Amp at 250 Vac, 10000 Amp at 125 Vac 35 Amp at 250 Vac, 10000 Amp at 125 Vac | 100000 Amp (RMS Symmetrical), 10000 Amp (DC) 100000 Amp (RMS Symmetrical), 10000 Amp (DC) | |
| Material | Nickel-plated bronze endcap Nickel-plated bronze endcap | ||
| Size | 0.41 In Diameter X 1.62 In Length 0.41 In Diameter X 1.62 In Length | 0.41 In Diameter X 2.00 In Length 0.41 In Diameter X 2.00 In Length | 13/32 In Diameter X 1-1/2 In Length 13/32 In Diameter X 1-1/2 In Length |
| Standard | CE Marked,RoHS Compliant CE Marked,RoHS Compliant | RoHS Compliant,CE Marked RoHS Compliant,CE Marked | UL UL |
| Sub Brand | Bussmann Series Bussmann Series | ||
| Type | Actuator Actuator | Fuse Fuse | |
| Voltage Rating | 250 VAC 250 VAC | 480 VAC 480 VAC | 600 V 600 V |
| Add a product to the cart | Show more details | Show more details | Show more details |
