$224.91 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

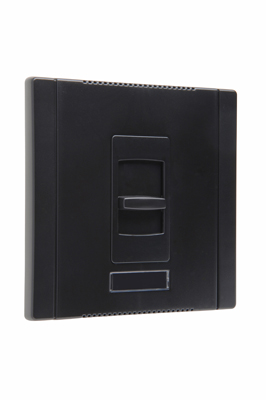

Slide Dimmer, Low Voltage, Single Pole1600VA, Black
Slide Dimmer, Low Voltage, Single Pole1600VA, Black
150
- UPC
- 785007618617
- UNSPSC
- 39122206
- Country of Origin
- CN
- Amperage Rating:
- 1600 VA
- Material:
- Thermoplastic
- Number Of Poles:
- 1
- Size:
- 4.65 L x 1.44 W x 4.87 H In
- Type:
- Titan™ Series Low-Voltage Dimmer, Slide-to-OFF, Wide
- Voltage Rating:
- 120 VAC
- Actuator:
- Slide
- Amperage Rating:
- 1600 VA
- Environmental Conditions:
- Non-Condensing Humidity: Less than 95
- Frequency Rating:
- 60 Hz
- Load:
- Up to rating of device (including de-rating)
- Material:
- Thermoplastic
- Mounting:
- Wall
- Number Of Poles:
- 1
- Operating Cycles:
- 10k
- Operating Temperature:
- Ambient: Between 0 to 40C Deg
- Size:
- 4.65 L x 1.44 W x 4.87 H In
- Standard:
- cULus, California Title 24 Compliant
- Sub Brand:
- Pass & Seymour
- Type:
- Titan™ Series Low-Voltage Dimmer, Slide-to-OFF, Wide
- Voltage Rating:
- 120 VAC
CD700I
$29.12 /ea
Slide Dimmer, Single Pole700W 120V, Ivory
| Attributed Data | Included |
|---|---|
| Actuator | Slide Yes |
| Environmental Conditions | Non-Condensing Humidity: Less than 95 Yes |
| Load | Up to rating of device (including de-rating) Yes |
| Material | Thermoplastic Yes |
| Mounting | Wall Yes |
| Number Of Poles | 1 Yes |
| Operating Cycles | 10k Yes |
| Standard | cULus, California Title 24 Compliant Yes |
| Sub Brand | Pass & Seymour Yes |
| Type | Titan™ Series Incandescent Dimmer, Slide-to-OFF, Narrow Yes |
CD700W
$29.12 /ea
Slide Dimmer, Single Pole700W 120V, White
| Attributed Data | Included |
|---|---|
| Actuator | Slide Yes |
| Environmental Conditions | Non-Condensing Humidity: Less than 95 Yes |
| Load | Up to rating of device (including de-rating) Yes |
| Material | Thermoplastic Yes |
| Mounting | Wall Yes |
| Number Of Poles | 1 Yes |
| Operating Cycles | 10k Yes |
| Standard | cULus, California Title 24 Compliant Yes |
| Sub Brand | Pass & Seymour Yes |
| Type | Titan™ Series Incandescent Dimmer, Slide-to-OFF, Narrow Yes |
CD703P
$52.41 /ea
Slide Dimmer, Single Pole/3Way PRESET 700W, Brown
| Attributed Data | Included |
|---|---|
| Actuator | Slide Yes |
| Environmental Conditions | Non-Condensing Humidity: Less than 95 Yes |
| Load | Up to rating of device (including de-rating) Yes |
| Material | Thermoplastic Yes |
| Mounting | Wall Yes |
| Number Of Poles | 1 Yes |
| Operating Cycles | 10k Yes |
| Standard | cULus, California Title 24 Compliant Yes |
| Sub Brand | Pass & Seymour Yes |
| Type | Titan™ Series Incandescent Dimmer, Preset, Narrow Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
CD700I
Slide Dimmer, Single Pole700W 120V, Ivory
$29.12 / EA
|
CD700W
Slide Dimmer, Single Pole700W 120V, White
$29.12 / EA
|
CD703P
Slide Dimmer, Single Pole/3Way PRESET 700W, Brown
$52.41 / EA
|
|
| Attributed Data | |||
| Actuator | Slide Slide | ||
| Environmental Conditions | Non-Condensing Humidity: Less than 95 Non-Condensing Humidity: Less than 95 | ||
| Frequency Rating | 60 Hz 60 Hz | ||
| Load | Up to rating of device (including de-rating) Up to rating of device (including de-rating) | ||
| Material | Thermoplastic Thermoplastic | ||
| Mounting | Wall Wall | ||
| Number Of Poles | 1 1 | ||
| Operating Cycles | 10k 10k | ||
| Operating Temperature | Ambient: Between 0 to 40 Deg C Ambient: Between 0 to 40 Deg C | Ambient: Between 0 to 40C Deg Ambient: Between 0 to 40C Deg | |
| Size | 2.85 L x 1.44 W x 4.87 H In 2.85 L x 1.44 W x 4.87 H In | ||
| Standard | cULus, California Title 24 Compliant cULus, California Title 24 Compliant | ||
| Sub Brand | Pass & Seymour Pass & Seymour | ||
| Type | Titan™ Series Incandescent Dimmer, Preset, Narrow Titan™ Series Incandescent Dimmer, Preset, Narrow | Titan™ Series Incandescent Dimmer, Slide-to-OFF, Narrow Titan™ Series Incandescent Dimmer, Slide-to-OFF, Narrow | |
| Voltage Rating | 120 VAC 120 VAC | ||
| Wattage | 700 W 700 W | ||
| Add a product to the cart | Show more details | Show more details | Show more details |
